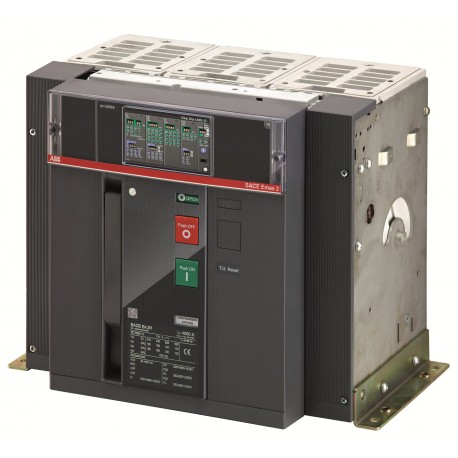

1SDA071101R1 ABB E4.2V 2000 Ekip Dip LI 3p F HR
1SDA071101R1
071101
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA071101R1 ABB E4.2V 2000 Ekip Dip LI 3p F HR is an air circuit breaker engineered for primary electrical distribution and system protection. Heavy-duty switching devices of this type are routinely integrated into industrial switchboards to interrupt overload currents and safeguard downstream assets against short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy
- Simplified SCIP: f84cc228-c792-41fe-ab94-61509b732e59 Netherlands
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VTEKBA000A000000XX
- EAN: 8015644749514
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy |
| Simplified SCIP | f84cc228-c792-41fe-ab94-61509b732e59 Netherlands |
| e88d4f56-9fdf-49e9-8e8f-1d75bd4e477a Germany | |
| 8addde03-6156-4ece-bcbb-26ce9531337e France | |
| a646035d-a6d8-4d54-991f-b238e9147901 Norway | |
| dfb8b10e-b0d0-4588-be85-444612a902ee Germany | |
| e38c8edd-6e37-49d4-9f81-2007be094908 Denmark | |
| bb31659e-95f0-4113-9430-6dc510308b0d Greece | |
| f365ac48-a5a9-4206-b6cf-5dc1a000c4d8 Croatia | |
| 3b25b41f-736c-4aed-bd23-50345b3febac Hungary | |
| be61602f-9951-4d0b-87f6-21b47703098e Belgium | |
| 3dd96d1b-21b9-47c3-b9e2-79f1e827034f Poland | |
| 0ae53107-e0eb-4b6c-b004-fe939bfcb39a Poland | |
| e5ffa0c9-b44e-4b06-9512-312ce61019fb Estonia | |
| e0b1d4d6-e2a8-423e-87e4-5733524bdd1c Bulgaria | |
| 5062d2bb-af36-464d-94aa-aa81463277f3 Hungary | |
| 1976f643-c619-42d7-ac0f-59b13d880529 Sweden | |
| b294b93e-1c22-4941-969a-178e678f66a4 Germany | |
| 5d2df5ae-b5a6-4474-837d-6afeec5085e7 Portugal | |
| 96fd910b-11bc-475b-94f6-342bf5cd6a8e Spain | |
| e1c16c73-5b40-4f36-9276-0bf0abffedbe Sweden | |
| 6aa7c188-9623-4143-a9a8-85f35bc6490b Belgium | |
| 5428a024-09ef-48bf-8e2f-52cc6e68a8f1 Finland | |
| a6f6dfa6-b66f-48a2-983f-14bc215367eb Germany | |
| 24e217f6-4d92-410f-abe2-c15222b3199b France | |
| 3983167e-77b3-4f35-a9b6-9433dafcdc5d Germany | |
| ea51fc73-50a3-435a-9cb3-d440f0e86800 Czech Republic | |
| ed1a1f07-85d0-456a-bc91-b67b87da30f3 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VTEKBA000A000000XX |
| EAN | 8015644749514 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644749514 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Connecting Capacity | 1600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
