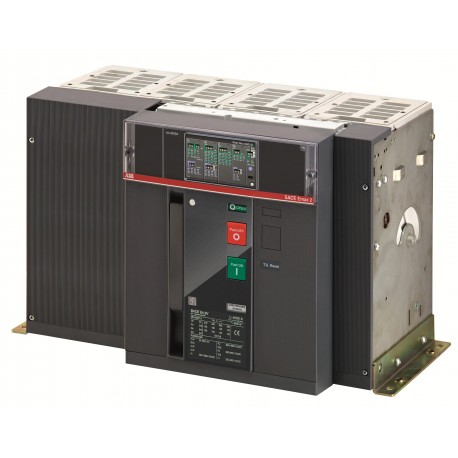

ABB 1SDA071783R1 1SDA071783R1 ABB E4.2S 3200 Ekip Dip LSIG 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA071783R1 ABB E4.2S 3200 Ekip Dip LSIG 4p F HR

1SDA071783R1

071783

ABB

1 Pcs.

E4.2S 3200 Ekip Dip LSIG 4p F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP659e28cf-7953-4e49-86b5-1b635fb2125e Italy
Simplified SCIP39a54939-4191-4b38-b3f6-d2b07ec0efa7 Germany
b8facfbd-a471-4af3-a0cd-4505d4191ab2 Germany
9a27fbd9-4f08-4ee4-a923-1a8b6b8b3fb2 Denmark
d1b2f5d7-4d86-462c-b389-cb37c6913dba Germany
42576543-28b3-4678-b6fd-b8c2b0874e9f Hungary
3c86255e-acf0-4da9-adf3-dec58f9da095 Norway
2791efde-7c8f-4f05-bd51-0a155583fdd9 Poland
a627932b-365e-4b1e-8186-beff47840f58 Poland
15238ebc-e0be-4258-ab96-5194c3934e71 Poland
184fa820-745c-464a-98bc-d93621123e6e Czech Republic
766de56a-18f8-49e5-a7c5-9f3e5c8a4731 Portugal
4b900605-59bf-4ce3-8485-df5c4a36585a Sweden
2862cd26-0de8-4ddd-87fe-c96465bc4f0b Estonia
dca9e64b-3fbd-4676-8726-b3967f7d8e48 France
5c17d160-cf26-49f0-83b0-371fcf545d15 Croatia
e20ca87f-1bab-4cca-b62c-38e63982b7c2 Germany
b49b8493-24a8-4d46-8552-d9be2e78bed6 Finland
502f7301-2d9c-417d-bfc1-876bca423be4 Greece
b6cac39d-7463-4d7a-b467-1216e6819d7b France
cde34414-95ea-46de-a655-0e52ccebc4b0 Germany
c7ceb500-e047-4f33-b06f-724752011435 Belgium
d2a13a3f-d3c1-453b-965b-716a79238aa0 Sweden
dd867c27-9a46-44f2-aab1-a849782bacbb Netherlands
9b428f56-2c7a-488c-bc91-7983576090cf Bulgaria
6580bb92-0e3c-4617-906d-47ef4640a508 Belgium
6aa86cc9-7d83-4512-8f7a-5941bf14133b Spain
05316be7-f361-4edb-973f-ebfd9cd4143e Hungary
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZCSVENBC000A000000XX
EAN8015644756338
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight70 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight77 kg
Package Level 1 EAN8015644756338
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH001252R0197
Technical
Connecting Capacity3000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 7000 cycle
Ue = 500 ... 690 V 7000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4P
Power Loss425 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 66 kA
(660 V AC) 66 kA
(690 V AC) 66 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 66 kA
for 3 s 66 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 66 kA
(525 V AC) 66 kA
(690 V AC) 66 kA
Rated Uninterrupted Current (Iu)3200 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksYes, 690V
Terminal Connection TypeRear flat Horizontal
Terminal TypeBolt
Tightening Torque70 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001001R0100
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
