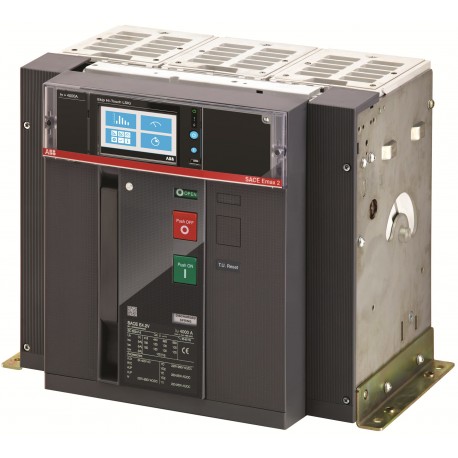

ABB 1SDA071219R1 1SDA071219R1 ABB E4.2H 4000 Ekip Hi-Touch LSIG 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA071219R1 ABB E4.2H 4000 Ekip Hi-Touch LSIG 3p F HR

1SDA071219R1

071219

ABB

1 Pcs.

E4.2H 4000 Ekip Hi-Touch LSIG 3p F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP5db9272f-d385-4a4a-a0e6-73274e7613b2 Italy
Simplified SCIP52ee92af-c439-45a3-a2c0-955d03eac7dd Belgium
484600e6-2d9c-428c-8dd6-0b2eb5a2ae0f Germany
aa1da43e-11c3-453f-9d55-ceb372b001d5 France
b2872b81-fc2e-41d7-8dda-0a6e5956578e Finland
3add110a-fb75-4e6e-8d7c-bb7a90a80553 Germany
bb45f1dd-acb1-47d4-b4ea-ccdcb37af4b7 Belgium
002851b3-b81e-4992-88e8-6f3bfd25b093 Croatia
11df2d18-7917-4feb-aa30-7d8c8d50bf0d Hungary
42a3ee38-bd86-4431-bd27-7f1338f7f02d Poland
5bfbfccf-45db-46c4-ba73-4eb1b07cb6f0 Spain
c73e6bf3-53fc-45c0-88c2-f75f52c1b162 Germany
daa39d1f-33f9-4443-9358-267be82e8cf9 Greece
7e8d0278-cc83-4413-87ac-4f8d7a506a50 Norway
e0825598-5eb5-4b5a-b32b-329fe4414733 Hungary
51b80a1c-ba18-43f5-824e-0db48c78b303 Poland
f1dab362-c2c8-450c-aa87-1529879afea8 Bulgaria
a0f3bbf0-8f95-472e-974d-46b5fc4e5a02 Germany
cb390887-829f-468d-8679-881621d4d4de Estonia
1ecd2706-f3eb-43f2-a084-b580109a9075 Portugal
f7bd00f4-0457-4082-acf6-36be65ce9848 Sweden
74d00c76-6ba0-49ad-b13a-3c3523aea67a Netherlands
4fbb4799-0ba9-4d07-a444-156b721dbe37 Poland
ac62acff-1adf-414d-b63d-64c17fded1db Czech Republic
15dd913d-c47a-489c-baf3-dbe1b2951da1 Germany
69605861-17a7-4103-81ba-48e81c991822 Denmark
54dd1f52-5032-4311-ae5a-d7cc06f889b2 Sweden
b3206d46-6660-49d9-9b42-37ba68beac6f France
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ4HWERBK200A000000XX
EAN8015644750695
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width384 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight56 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight63 kg
Package Level 1 EAN8015644750695
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH001252R0171
Technical
Connecting Capacity4000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Loss465 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 85 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Hi-Touch LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksYes, 690V
Terminal Connection TypeRear flat Horizontal
Terminal TypeBolt
Tightening Torque70 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001001R0100
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA071219R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 4000 A
Rated voltage (EF003977) 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 100 kA
Overload release current setting (EF002336) 1600.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 2400.0 A
Adjustment range undelayed short-circuit release (EF007131) 6000.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Back
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
