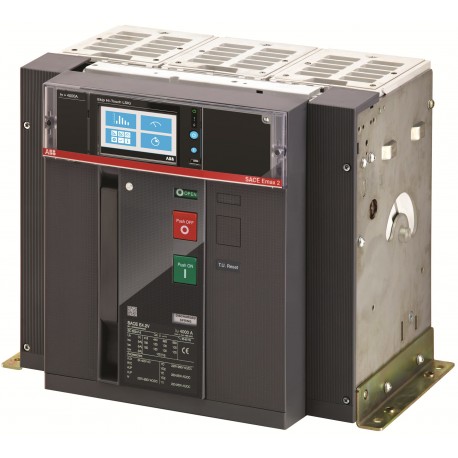

ABB 1SDA071220R1 1SDA071220R1 ABB E4.2H 4000 Ekip G Hi-Touch LSIG 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA071220R1 ABB E4.2H 4000 Ekip G Hi-Touch LSIG 3p F HR

1SDA071220R1

071220

ABB

1 Pcs.

E4.2H 4000 Ekip G Hi-Touch LSIG 3p F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP048da8dd-54a6-4100-8b89-96e39950fb95 Italy
Simplified SCIPabbb2853-9b95-4770-aa17-268d2ecc53ce Germany
35e532da-006a-4773-ae5e-56ab54529a18 Belgium
dc92e9ab-8aff-41a8-81ef-f77db491f1bf Poland
1790c6de-c051-45e0-9bc6-1aa0c1093938 Sweden
559d6e23-2d59-46ae-b3da-a7ccdb5f0460 Poland
4abbc6ca-0a8b-49d2-87c3-9ea480a09cad France
84fa3955-272c-4323-bad3-d17901c713da Germany
63ec3679-06ab-4909-8d17-e74db8c1b172 Croatia
f2367f8f-f5da-419a-9339-1275f762962f Norway
cbd1cb8f-ea9c-417e-b483-11fdbe7935e0 Finland
b7cb565c-d051-4e53-8c87-d8593584c1b0 Spain
83da974d-8305-45d1-b94c-6e8697df7027 Hungary
5a6b2f00-1e6a-494a-bee0-0e0f79b03c9c Germany
c6efe789-26e0-4b72-b0ef-ac31b9ee76c3 Germany
219fa461-62f4-46c4-b2d2-b413e082b42f Germany
6fb0cbaf-98ac-48a3-bc0a-bd2876d23431 France
9e7b0e5e-a108-438e-a719-8a898e218f90 Netherlands
3c6906f4-c468-44af-8766-ca9ef8c96b0d Poland
f035c3af-2770-44b2-8ae2-8400259de2d0 Sweden
30c2b425-e574-4254-8541-c897f300a1a2 Belgium
c38a2ccd-9211-4a88-8312-5736e2f86464 Czech Republic
f0ba1cc8-18b8-4fa5-a170-64c767a58e42 Denmark
e827fd8e-4b20-428b-a86a-f72f1769991d Bulgaria
7e782f10-1858-4c4e-8552-5cd7f78d58b4 Portugal
429c1169-3a64-4278-a448-f6b63e64792a Estonia
a402829b-7f1a-4c4a-ba89-2c74153620d3 Greece
15f6d6a0-579d-4ccb-99e3-6e37b072fb2b Hungary
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ4HWERBQ200A000000XX
EAN8015644750701
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width384 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight56 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight63 kg
Package Level 1 EAN8015644750701
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Connecting Capacity4000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Loss465 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 85 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(525 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip G Hi-Touch LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksYes, 690V
Terminal Connection TypeRear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
