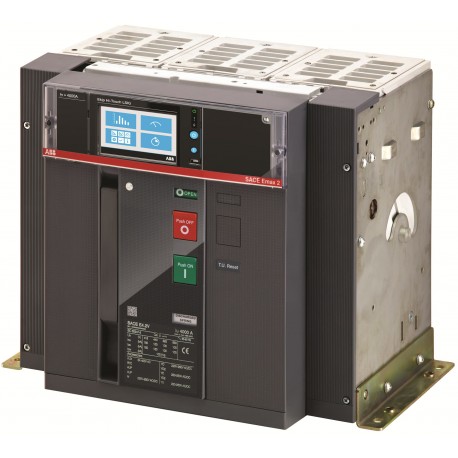

1SDA071169R1 ABB E4.2H 3200 Ekip Hi-Touch LSIG 3p F HR
1SDA071169R1
071169
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB E4.2H 3200 Ekip Hi-Touch LSIG 3p F HR functions as a primary air circuit breaker engineered for high-current industrial switchgear. It provides precise tripping parameters and dependable circuit protection to maintain uptime in demanding electrical environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: fb336790-0e0b-43e1-a1c5-b4aaf65e2750 Italy
- Simplified SCIP: 4c004469-be25-4669-aecd-a6e979ff871c Belgium
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4HVENBK200A000000XX
- EAN: 8015644750190
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | fb336790-0e0b-43e1-a1c5-b4aaf65e2750 Italy |
| Simplified SCIP | 4c004469-be25-4669-aecd-a6e979ff871c Belgium |
| af767e2a-b686-473d-87dd-79f9db37ef91 Germany | |
| f966e3c6-9613-472e-b0bd-249f1071eb4b Sweden | |
| b491fc16-272e-40f0-813b-a134dc1571a6 Germany | |
| b2f0e301-740d-4bee-a8b3-d84af8d07192 Belgium | |
| c83df422-46de-4166-a1c9-a19820339152 Finland | |
| 00b6a7e9-c04c-4f9d-a34a-5b6b66b03ca4 Estonia | |
| cd6328aa-c3e8-40de-aab6-220319dea83a Hungary | |
| 8ba7b5ff-0925-49ce-904d-7187ff32c0f9 Greece | |
| ecb7cf71-0f92-45fd-be6d-b7240fd8c65c Portugal | |
| 6845a1d5-aefe-4c52-b203-e263bf5abc59 Bulgaria | |
| 52804645-65ab-4d8c-9b7b-1fd5c7466b42 Sweden | |
| 83661567-43d5-48b0-bc7f-8b811c48a531 Poland | |
| c179d59e-f42e-42b1-be46-0bcc97a7d8a6 Czech Republic | |
| f061ac41-0096-47f0-b8be-fef946576bc9 Poland | |
| 0f3db5f7-a62e-4252-988c-f83da58c29ba Netherlands | |
| feb1383c-7748-4e22-a6eb-b4277af4f2e8 Croatia | |
| 591020c5-a233-492d-935e-68bf43ad0b51 Germany | |
| cc159b53-a065-4292-a12c-fffa04679b2a Denmark | |
| 809f01ad-181c-48af-9f32-473971f5e3e5 Spain | |
| 86d5444e-b019-4697-a23c-e36dc1002afe Germany | |
| fd354631-38f5-4216-a1d7-5271b9701a21 Poland | |
| a4946e78-855d-4ed2-a59b-8b1bfd0a7435 Germany | |
| 4896ba54-ae19-47fc-8e4d-06646c40c646 Norway | |
| 18c6a0f3-1302-4c46-adf5-ff9ac0751e2b Hungary | |
| 96242d0a-2219-4659-a0a3-63d6fceb96c8 France | |
| 9849f5af-1282-4720-b8c6-48fb194fe806 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4HVENBK200A000000XX |
| EAN | 8015644750190 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644750190 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Connecting Capacity | 3000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 7000 cycle |
| Ue = 500 ... 690 V 7000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 85 kA |
| for 3 s 66 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (525 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
