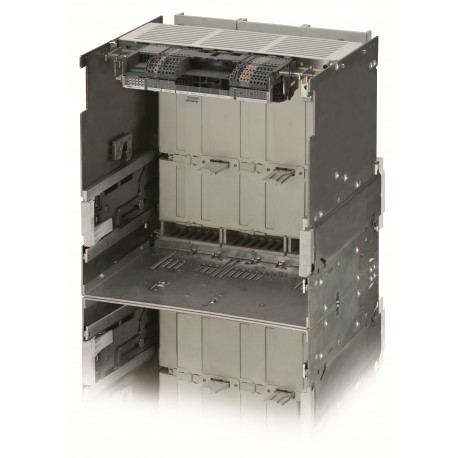

1SDA073913R1 ABB E4.2 W FP Iu 3200 3p HR HR
1SDA073913R1
073913
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA073913R1 withdrawable circuit breaker housing unit functions as a secure docking cradle in industrial switchgear, allowing high-capacity breakers to be easily inserted, tested, and removed. These mounting frames isolate heavy electrical equipment safely.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4C32A0XX
- EAN: 8015644778460
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 425 mm
- Product Net Height: 425 mm
- Product Net Depth / Length: 383 mm
- Product Net Weight: 50 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 570 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4C32A0XX |
| EAN | 8015644778460 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 50 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 570 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 57 kg |
| Package Level 1 EAN | 8015644778460 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | W FP |
| Technical | |
| Connecting Capacity | 3000 mm² |
| Current Type | AC |
| Number of Poles | 3P |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| 800 V AC | |
| 900 V AC | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 900 V |
| Recommended Screw Driver | M12 |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200097B0201 |
| 1SDC200074B0201 | |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0820 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
