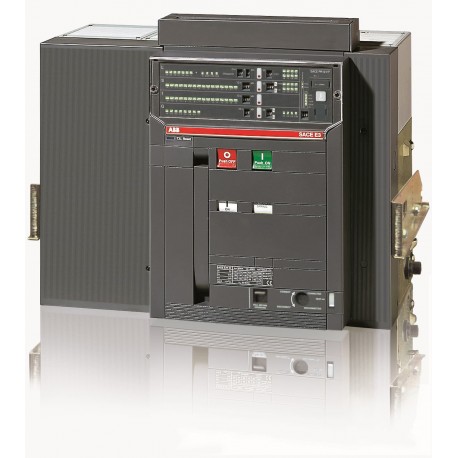

1SDA056170R1 ABB E3N 3200 PR121/P-LSIG In 3200A 4p W MP
1SDA056170R1
056170
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB E3N 3200 PR121/P-LSIG In 3200A 4p W MP is an air circuit breaker designed for robust power distribution, overload protection, and short-circuit interruption in heavy industrial switchgear. Devices of this type manage high current loads and safeguard critical electrical infrastructure from fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 5db73268-fea7-46b4-a6fa-52638ce4ec7c Italy
- Simplified SCIP: b5535c95-24bc-4447-82cf-49d6cef6ac71 Belgium
- Environmental Information: 9AKK10103A6076
- EAN: 8015644575106
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 558 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 81 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5db73268-fea7-46b4-a6fa-52638ce4ec7c Italy |
| Simplified SCIP | b5535c95-24bc-4447-82cf-49d6cef6ac71 Belgium |
| 581750c5-885a-4417-a6b3-23dfd2894701 Germany | |
| 9f475313-2e8c-4119-a896-c7f7656322a5 France | |
| c7342ff3-3ab9-4f67-b71a-edfa0f2d1f8c Germany | |
| ec03ebeb-c8ac-4464-968a-13e723b5bfb0 France | |
| e5ba647d-f98f-4769-b46d-4b5a2a22241f Spain | |
| a5b08b95-f62d-4385-8687-614ecd906664 Hungary | |
| 28083654-81d5-420a-bfcc-2509763c2926 Norway | |
| 83c5469a-e4e9-41b7-a6dc-c7e6b7c43684 Finland | |
| d0242e22-b568-48d5-96e0-b521e72fcdbf Germany | |
| 2e4669d0-2331-4e50-b1de-265ffa9a4655 Belgium | |
| a9409436-3197-4c10-a0c6-263478bee5a9 Germany | |
| 5c76f698-6a61-4ae0-b84a-cba3118d518f Poland | |
| f2088fc5-910a-4466-9a2c-9283a7e2c67a Netherlands | |
| c11f7599-2ab8-4f08-b74e-62e726c2cf4c Poland | |
| 0d686e04-50e0-4318-9e96-2f535e48327d Czech Republic | |
| b1b79350-5a3b-4b48-af48-e2c2ac6d14e1 Germany | |
| ddeb2397-e674-4c63-8558-1018ad9d9e2f Denmark | |
| aac24c74-d900-44b1-872b-0f185945bcc6 Estonia | |
| b65f08d5-3c78-4965-9dbf-abeeac75adf2 Croatia | |
| b992155f-6597-4114-8bb5-f49c54211d52 Hungary | |
| 7e4d2c56-df3f-419d-8515-f380ed9b7ee1 Portugal | |
| 064e8993-1925-42b9-a4b7-98dcf18b1f58 Greece | |
| 185b8c91-81e7-450d-93bc-0bcf69e8832d Sweden | |
| 7e989f54-ac40-49c2-906b-1679034f886a Poland | |
| a27d5d50-2ea9-4e39-9288-7a7ecf2480d0 Bulgaria | |
| d0eed342-9636-4679-a152-5cbb513f7a3c Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644575106 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 558 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 81 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 96 kg |
| Package Level 1 EAN | 8015644575106 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 6000 cycle |
| Ue = 500 ... 690 V 5000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 570 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 3200 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
