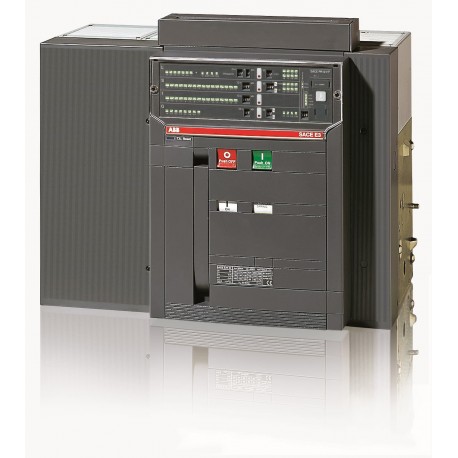

ABB 1SDA056154R1 1SDA056154R1 ABB E3N 3200 PR121/P-LSIG In 3200A 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056154R1 ABB E3N 3200 PR121/P-LSIG In 3200A 4p F HR

1SDA056154R1

056154

ABB

1 Pcs.

E3N 3200 PR121/P-LSIG In=3200A 4p F HR E3N3200 PR121/P LSIG 4P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP998b2338-7020-4aab-ad3a-77f634a72973 Italy
Simplified SCIPc87b8c24-9516-4a71-96f3-c199fc06c097 Germany
008cef02-977f-4cec-8698-22ba099b88ef Poland
435f6d13-eb11-42f0-8bac-b41ad2149906 Norway
2c98f610-9b64-4468-973b-299a97c5b635 Finland
7575cc56-8fd9-475f-9e1a-f0f012ccaf38 Belgium
6c144b08-63cc-44d5-8f6e-246382e58596 Germany
4cc72a49-8738-40cd-9495-f56d87d8c042 Estonia
60248f1b-1c88-44e3-8a0c-cb5a10815d0b Hungary
7a0407e0-ed53-42a3-a0db-8d17b39441c1 Portugal
52c2a5ec-0f39-4881-9385-13d252039fc7 Greece
81ae5e36-2096-40b5-b7ef-3a782c64ecfc Bulgaria
cfcd19f0-c006-475d-aa05-f38182449800 Poland
59a7c397-2fa3-4ce1-98b7-6762d15a6873 Sweden
1c397b0e-180e-4bdd-b456-cd98012b3336 Poland
2ccd338e-25a4-4f62-8130-a04a71091532 Netherlands
e6e43028-11d8-4b0e-93ed-8fca66922c19 Czech Republic
630cc86a-3789-468a-9cd0-0c1c79fee891 Denmark
79ec679d-853b-432d-99ff-8e42e1f96385 Germany
03e16acc-b294-42a0-967e-32f8e53b0344 Croatia
b92e923f-c1be-4095-8f40-0bc75af7feb0 France
10df0e6e-f4e2-415f-a61a-455bd003f8de Sweden
adc476a5-bd34-46b1-9f55-20d4ad74b82c Germany
85530dcf-5d84-4312-82cf-2d679dbfda86 Germany
28dbcb82-b0bf-45ba-8d31-18decaee272a Hungary
e50c14b9-d771-4ff7-b1dc-d2d487701fd5 France
6d07e920-2e85-440b-923b-841c3b110fd6 Belgium
3b49f163-5ac8-4029-a8c8-00ad949f720b Spain
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644574949
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width530 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight76 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight90 kg
Package Level 1 EAN8015644574949
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 6000 cycle
Ue = 500 ... 690 V 5000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Power Loss330 W
Rated Current (In)3200 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)3200 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu)3200 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE3
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0015
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
