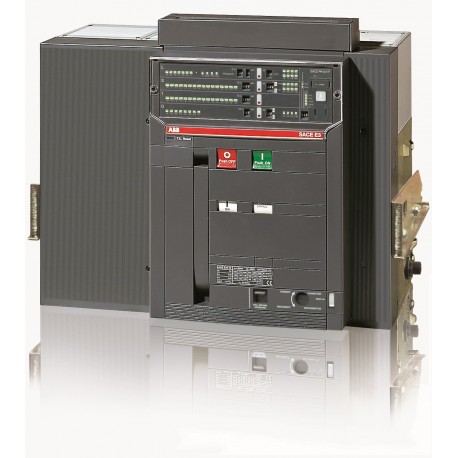

1SDA056169R1 ABB E3N 3200 PR121/P-LSI In 3200A 4p W MP
1SDA056169R1
056169
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SDA056169R1 E3N 3200 PR121/P-LSI In 3200A 4p W MP is a withdrawable 4-pole air circuit breaker designed for heavy-duty electrical installations.
Large commercial and industrial switchboards rely on withdrawable air circuit breakers for safe isolation, servicing, and robust fault protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 328f633a-e7d5-4488-98ff-c372c4194762 Italy
- Simplified SCIP: bce14d37-5b6e-436a-81b6-6d11844a8d05 Spain
- Environmental Information: 9AKK10103A6076
- EAN: 8015644575090
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 558 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 81 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 328f633a-e7d5-4488-98ff-c372c4194762 Italy |
| Simplified SCIP | bce14d37-5b6e-436a-81b6-6d11844a8d05 Spain |
| 79857f9d-b39f-415b-95c6-0047c08f0238 Hungary | |
| 53006c43-a230-49c4-b6fd-22cc8a557046 France | |
| 553ed738-eeab-44b8-928b-0ac15098781c Germany | |
| ab1e6be2-7e28-4d1e-a02a-29a17d961830 Germany | |
| ce28f69b-15db-41a0-9e24-7681181633a8 Belgium | |
| d43aff35-ea51-465d-bde6-cf5a3a97ab78 Estonia | |
| 79916ff9-2b94-45a9-a5a1-c1f44d00b3f3 Greece | |
| 2ab7fa36-91c6-4f4b-9b40-07556afe2495 Croatia | |
| 8013f6e9-014f-4c09-ae04-58cc8eec0ba5 Portugal | |
| 90b678b4-2c93-4f65-afe1-770109b71cba Poland | |
| 8467df01-81c5-4428-afc8-08bfae7b67c9 Bulgaria | |
| 45a9a50b-f67d-4e60-b866-13349251afb1 Sweden | |
| edc26fbd-4e2a-412e-88e6-cc35dbeea863 Sweden | |
| 9b79ad8b-a152-4368-bf4c-44d69c89f2ed France | |
| 050561d5-d128-4fc8-8b46-8aad602371d0 Czech Republic | |
| da2de671-306b-4560-b14c-bab58f6e764f Hungary | |
| d58d1465-8795-46fd-9da3-60cb5dd16cc0 Poland | |
| c0dcab84-4ae8-44d0-b95d-a5a02e75da88 Netherlands | |
| 201797db-55ba-48cf-a2ea-7b6c4c33c02e Germany | |
| d4f5d3d8-e98c-402d-b07f-e92b40cf8f97 Denmark | |
| ff7588a5-55a0-46e0-bb9d-49d25164b982 Poland | |
| 258fcff5-6334-4a9a-af07-7d57c25538f4 Germany | |
| 3136c6ac-6106-4a74-8fe1-33858b83638d Belgium | |
| d43393b1-109c-4774-abae-e6141e4e1129 Germany | |
| 591693f3-58fd-4179-a2b7-f7b82da93fed Finland | |
| 9920ae69-1c21-4ef7-a6bf-7edf861672f7 Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644575090 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 558 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 81 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 96 kg |
| Package Level 1 EAN | 8015644575090 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 6000 cycle |
| Ue = 500 ... 690 V 5000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 570 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 3200 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
