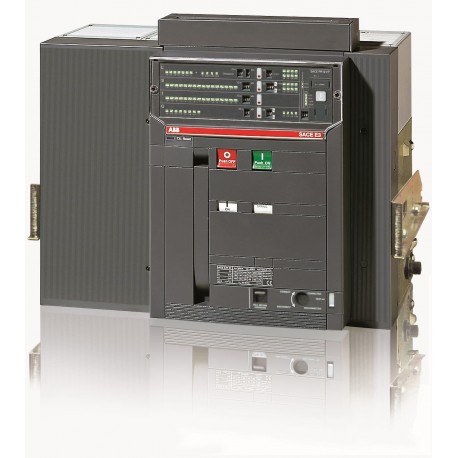

ABB 1SDA056138R1 1SDA056138R1 ABB E3N 2500 PR121/P-LSIG In 2500A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056138R1 ABB E3N 2500 PR121/P-LSIG In 2500A 4p W MP

1SDA056138R1

056138

ABB

1 Pcs.

E3N 2500 PR121/P-LSIG In=2500A 4p W MP E3N2500 PR121/P LSIG 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
E3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPc7af04b2-baf3-4d66-b8a2-04e165826ff0 Italy
Simplified SCIPc9d5fdcb-187e-43ba-b8f1-c1a24e8abd54 Hungary
33784619-e234-4f39-a495-b5a6ed72b22e Poland
17311237-b733-4577-b0e8-150a57227ff4 Germany
8aee05dd-ae6a-41b9-997c-5811e0c4e5a5 Belgium
0eeadde2-15ab-43d7-a814-bf64b8879f8e Finland
a48e979b-1ef1-4bdc-aaef-c9fe0a7ded8f Norway
5bd5d834-d1b5-4559-b7ed-afebbc466a8e Germany
e733f374-2246-473b-820c-17eda6283489 Portugal
23d5a146-003a-4f38-812f-7fad04b1a9cb Greece
61f68f0e-d2e7-4564-a12d-5204bd9aa400 Poland
70d55ceb-338f-4f57-9a21-303310a84989 Sweden
81354048-4118-43d1-9d23-cb6863a0fba8 Bulgaria
357f3e96-595c-4b47-9fb3-c6580d964bf0 Estonia
2d24cb07-05ab-4dc8-a1dd-447081211aac Hungary
8f605475-43ae-475e-92d2-38bbdbde15c2 Croatia
d5a83dd1-115b-47a2-aafa-9d37a551f8ad Germany
0c795256-f958-4e95-9ab2-f876f67cc061 Denmark
f7bfafff-ca35-41d2-8686-2c1fadf66735 Poland
2df6f1b5-ea8d-4742-92bc-01b0c3e55ef6 Netherlands
79f819c2-4e2b-493c-9a4c-8118a40632bb Czech Republic
25d4df8e-e669-464e-b1d7-0fc923ea3a7e Belgium
ce011500-2ee2-400a-9c65-c22102cfa371 Spain
2f607c8f-78f3-4129-b64f-c6ab65c6f899 France
fce54fd3-9ac8-47c1-ad19-a0bfa7e24b87 France
1062af29-5613-41db-8a2e-e6c6116f6c0b Germany
6d52c24e-73fe-4eaf-bd42-062282730114 Sweden
a7948583-d04c-435b-a517-493af646fc8e Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644574789
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width558 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight81 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight96 kg
Package Level 1 EAN8015644574789
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 8000 cycle
Ue = 500 ... 690 V 7000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Power Loss350 W
Rated Current (In)2500 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2500 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu)2500 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE3
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0015
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
