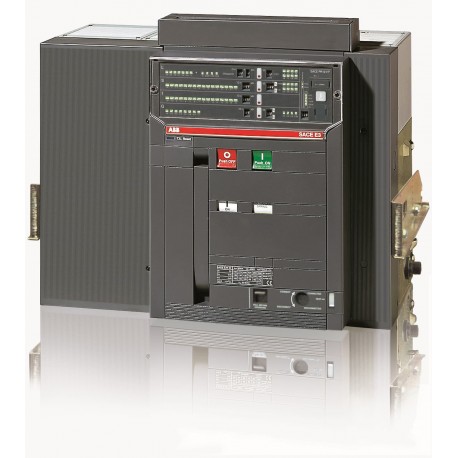

1SDA056137R1 ABB E3N 2500 PR121/P-LSI In 2500A 4p W MP
1SDA056137R1
056137
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial electrical installations depend on components like the 1SDA056137R1 ABB E3N 2500 PR121/P-LSI In 2500A 4p W MP air circuit breaker to safeguard heavy-duty switchboards. These breakers provide essential fault interruption and system isolation to maintain operational safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: c80fdfbb-1e65-463e-86e5-ea70b2217709 Italy
- Simplified SCIP: 063eea40-cd79-474b-9112-562dc3a52981 France
- Environmental Information: 9AKK10103A6076
- EAN: 8015644574772
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 558 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 81 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | c80fdfbb-1e65-463e-86e5-ea70b2217709 Italy |
| Simplified SCIP | 063eea40-cd79-474b-9112-562dc3a52981 France |
| 54da3366-c49e-43e1-9ee0-515bdbaaf538 Hungary | |
| 1a97c912-f293-4a55-a07c-206da79219ec Spain | |
| 57cff031-849b-4575-8484-f0aa185364cb Germany | |
| 00c4d8ea-42cd-4e6a-9700-a84f6ce00d9d Germany | |
| e1794316-e0cc-4fd1-9115-2755b39711f2 Belgium | |
| d2dfe018-b794-4c06-8af9-b886ebc2c131 Croatia | |
| 9769f132-9940-4b9d-847d-506142ab8870 Estonia | |
| ad4909fe-02df-4659-a5aa-c3fdde5fe6fc Portugal | |
| e236c397-7452-4dea-b6c7-4e1e81b0e410 Greece | |
| 0d7ba882-27e4-4629-8b02-ffdb3ea2cb36 Poland | |
| 0b5a2fc4-d01f-4fad-b78a-f0e0bcd2a397 Bulgaria | |
| e271b80f-b875-4e78-8524-de85240c8549 Sweden | |
| 95564271-0e67-4097-b518-5d99d3091014 Denmark | |
| 9a747dcb-1177-4dfc-b8db-c397a94c2f10 Germany | |
| 62873191-68bc-482e-8fc8-4c95c19ce250 Hungary | |
| 60ab0c1f-496c-4177-8e12-ae11b0c6923f Poland | |
| 55733c9b-0bd4-4d6e-bde9-986235a97263 Czech Republic | |
| 72afbe45-5375-4009-8caf-73db5649de91 Netherlands | |
| 2584ed7f-2193-42e8-8b4b-5d2149b5eb8b Sweden | |
| 21526d70-11ac-45bc-90f2-605fac7e61c2 France | |
| 10da763b-435f-436a-92e1-84d4e7a0ea78 Poland | |
| ee766e26-0691-492a-9d21-f4f603d752a4 Germany | |
| e33abdaf-e08c-4e9c-8590-5eb0725f24e9 Norway | |
| bffe0eca-0b25-4d74-8b23-da234e34f7d6 Belgium | |
| f4d05695-6cfd-429e-af2c-a58eda050f33 Finland | |
| 425b3ea6-18ec-4059-9ccc-a3a96fb43d5d Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644574772 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 558 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 81 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 96 kg |
| Package Level 1 EAN | 8015644574772 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 7000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 350 W |
| Rated Current (In) | 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2500 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 65 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
