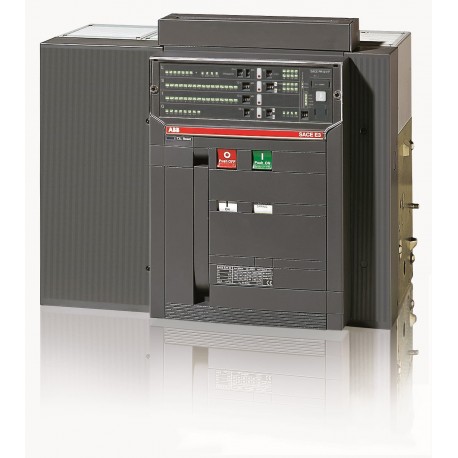

ABB 1SDA056121R1 1SDA056121R1 ABB E3N 2500 PR121/P-LSI In 2500A 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056121R1 ABB E3N 2500 PR121/P-LSI In 2500A 4p F HR

1SDA056121R1

056121

ABB

1 Pcs.

E3N 2500 PR121/P-LSI In=2500A 4p F HR E3N2500 PR121/P LSI 4P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E3

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP681d8b97-e829-4b2a-9f77-eeea13e6293e Italy
Simplified SCIP8b84eea4-f23f-470c-954d-47d6f1716885 Belgium
f4d96ac7-16a1-4893-b4ce-014c8dd6d59d Hungary
0ebad6d1-7c0c-449d-a457-77a927cf0bc3 Spain
add2991f-9c00-48d1-a33c-fc7f82349106 France
e40a038a-bb44-46e6-9635-e67d9caabbe2 Germany
a426cd87-0493-4425-a487-1dd3f98bfc65 France
857534eb-1216-4ffc-8d8b-9c5c5960d980 Germany
d9589448-ca68-42fa-a8a3-71dcd313aaa7 Czech Republic
94777cf6-ab95-42d4-8210-55c762a573a0 Netherlands
06de030d-63ce-4b30-9c3f-06bf0d2bd896 Poland
935ce4eb-e0e8-4e39-bc52-0798c5536ebb Croatia
e125a762-3f8b-454e-87a8-03aa9ac3f707 Germany
d58f6400-58f0-4b03-9c1b-dd3772735dcb Denmark
92e90b2b-0430-4303-a925-299e5c503420 Estonia
753a2e0f-944e-4a11-bdda-b4f34c27bce4 Hungary
81ff15ac-422a-4146-b535-c95c1e366ecd Greece
ae5bc090-d295-4cee-b920-3db37414c02a Poland
72371fba-3595-47b8-ac71-a1387877c552 Bulgaria
3ec4a153-6f31-4b37-b079-94c992fb7acf Sweden
76b85648-dde3-46b6-b9cb-f380735127b7 Portugal
5ccdc6c6-c80a-401a-8ce0-da4dcde7ec15 Sweden
73845d30-2f54-4d49-b24e-4a3b706cbb1d Norway
d87f09fd-a344-4bb7-8bf9-755c2c47c9ad Germany
3643e678-ef13-4e67-9d64-a265d4828014 Belgium
5525053e-fe3c-488b-99cf-dcd4a77f705e Finland
f2ed5796-657d-4c2b-b9ed-0d4005f23b64 Poland
6d8b71e0-98fb-4974-9791-430c8f00a850 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644574611
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width530 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight76 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight90 kg
Package Level 1 EAN8015644574611
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 8000 cycle
Ue = 500 ... 690 V 7000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles4P
Power Loss205 W
Rated Current (In)2500 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2500 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 65 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu)2500 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE3
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0015
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
