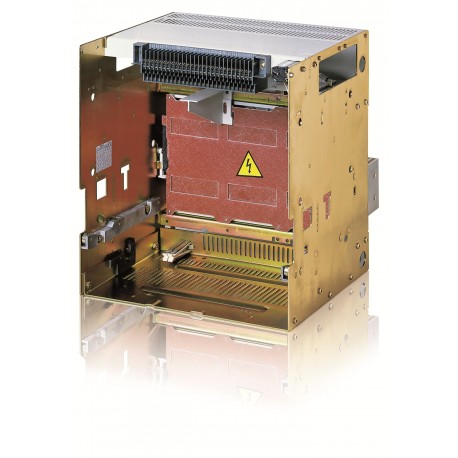

1SDA059675R1 ABB E3 W FP 3p VR-VR new
1SDA059675R1
059675
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
E3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A robust withdrawable mounting chassis, the Abb 1SDA059675R1 E3 W FP 3p VR-VR new serves as a fixed part base for large air circuit breakers in heavy electrical distribution systems. It offers the mechanical guidance and heavy-duty terminal connections needed to rack breakers in and out safely for inspection and maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Environmental Information: 1SDL000142R0
- EAN: 8015644620998
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 432 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 37 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 51 kg
- Package Level 1 EAN: 8015644609139
- Product Main Type: SACE Emax
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Environmental | |
| Environmental Information | 1SDL000142R0 |
| Ordering | |
| EAN | 8015644620998 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 432 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 37 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 51 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | WFP |
| Technical | |
| Current Type | AC |
| Number of Poles | 3P |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Release Type | EL |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Vertical | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000461R0002 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
