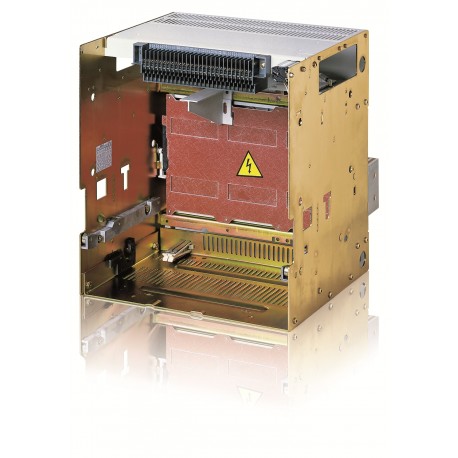

1SDA059693R1 ABB E3 W FP 3p HR-VR new
1SDA059693R1
059693
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
E3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA059693R1 ABB E3 W FP 3p HR-VR new is a fixed part designed to support the installation, safe extraction, and mechanical docking of withdrawable circuit breakers in heavy-duty switchgear setups. Components of this type provide a reliable interface for power distribution assemblies, allowing breakers to be safely racked in and out while maintaining isolation from live circuits during maintenance. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- Environmental Information: 1SDL000142R0
- EAN: 8015644621179
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 432 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 37 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 51 kg
- Package Level 1 EAN: 8015644609139
- Product Main Type: SACE Emax
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Environmental | |
| Environmental Information | 1SDL000142R0 |
| Ordering | |
| EAN | 8015644621179 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 432 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 37 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 51 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | WFP |
| Technical | |
| Current Type | AC |
| Number of Poles | 3P |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Standards | IEC |
| Sub-type | E3 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Rear flat Orientated | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0015 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000461R0002 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
