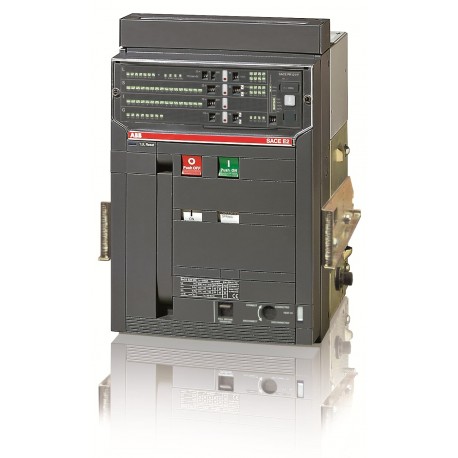

1SDA058300R1 ABB E2S 800 PR121/P-LSIG In 800A 3p W MP
1SDA058300R1
058300
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB air circuit breaker, part number 1SDA058300R1 E2S 800 PR121/P-LSIG In 800A 3p W MP, serves as an essential protective device designed to safeguard heavy-duty electrical distribution networks from overloads and short circuits. It interrupts fault currents efficiently in industrial switchgear installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: be9d33e2-edcb-4a47-90f0-1086eaade325 Italy
- Simplified SCIP: 99738029-b226-435c-877f-a2c4b584b259 Netherlands
- Environmental Information: 9AKK10103A6076
- EAN: 8015644605889
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | be9d33e2-edcb-4a47-90f0-1086eaade325 Italy |
| Simplified SCIP | 99738029-b226-435c-877f-a2c4b584b259 Netherlands |
| 882f624f-cba2-4579-a94f-af673698df9a France | |
| e2c64fe5-cb9d-489c-9ecd-acca3bdfda11 Hungary | |
| 71094fd6-7987-42e1-85e5-d20e53738730 Sweden | |
| 7387ed52-7668-4887-89be-e3280b26fca7 Germany | |
| 1c7f5fc7-1b62-4474-815e-6a1b7032608c Germany | |
| ab7852f8-249e-477a-8b3c-07924488ca75 Germany | |
| af027efc-4eb8-4e13-9d90-9759da49aa7a France | |
| 98c36af6-8065-4219-8787-e59ea134583c Poland | |
| 8b3c07a2-c6ac-46b4-9b61-d1358bdb7d40 Norway | |
| c5fa7451-5689-4240-84bd-795e254c1eb7 Belgium | |
| ab33725c-9b5f-461d-9ab4-60f86993d1d2 Spain | |
| fafb5740-637f-4459-96e7-5b43eece54b6 Poland | |
| bfd2a585-803c-4bf3-9f29-ad111bd50173 Sweden | |
| 5158927b-a179-4895-aa2c-cb1eaf543fc8 Denmark | |
| 0ef99142-23e9-460b-b0f0-c1c309a6f2ca Germany | |
| 9894e5f5-d2a6-4a31-9dd1-8233196a344e Germany | |
| 2566ba3d-c807-41a3-a65e-dc50e085ea9f Poland | |
| 2593aab7-caa7-4be9-89af-7386bbc29791 Belgium | |
| c5fac545-61de-42eb-8326-03590f689cdf Finland | |
| 8fd3f50b-194a-4c03-9514-f560b8dd547c Croatia | |
| 698cb4cc-82ca-4b7e-8be0-001709905384 Greece | |
| 949e096c-90d1-40de-b7bd-726afe1d267b Bulgaria | |
| 1f532fd1-23df-46c4-8837-d0efd9664232 Portugal | |
| 4e23bcc8-96ae-4a87-8a23-b77e10844540 Czech Republic | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644605889 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644605889 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 53 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
