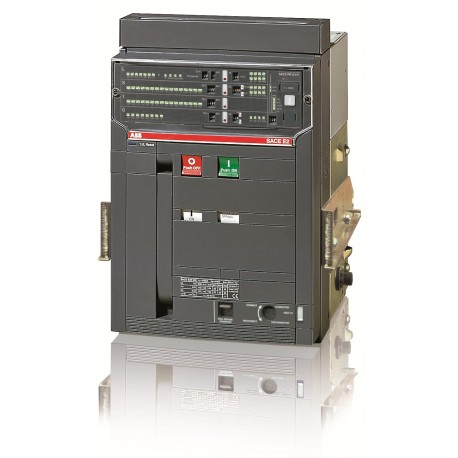

1SDA058299R1 ABB E2S 800 PR121/P-LSI In 800A 3p W MP
1SDA058299R1
058299
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB air circuit breaker, referenced as 1SDA058299R1 ABB E2S 800 PR121/P-LSI In 800A 3p W MP, provides reliable fault disconnection and overload management for industrial switchgear arrangements. This device type is engineered to interrupt abnormal current spikes efficiently in heavy electrical environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: f65d21a1-1a18-4490-8a57-91624e5b381f Italy
- Simplified SCIP: b8a4f9f7-d79b-47e1-b059-579931f15616 Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644605872
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | f65d21a1-1a18-4490-8a57-91624e5b381f Italy |
| Simplified SCIP | b8a4f9f7-d79b-47e1-b059-579931f15616 Bulgaria |
| 70ae5f88-cb84-4c77-9ced-2461aa9b4aa5 Poland | |
| f7d48f83-6e40-4e55-8255-43bcd209809b Croatia | |
| 72d9286c-a8ca-4880-a791-071fc6fdc0cc Hungary | |
| d79ba4ce-9fe9-481e-95be-a486aebae950 Poland | |
| 84055370-c492-4f60-908f-aaaa5f2e00ed Czech Republic | |
| 4261f0a0-1737-4473-902e-967e1a3d7769 Netherlands | |
| 13d1d8f5-3093-4c6d-a99d-3280f0418317 Germany | |
| 3b7b9f8d-c908-43c3-b4f5-0d8d2646e9fb Belgium | |
| a8892cbb-d8b3-48ea-8dc1-b6a6b162f887 Poland | |
| 7885da95-7701-4faf-af1e-a20550a2f133 Finland | |
| f650a13c-b0c7-4f3a-8b2a-2528ad770520 Denmark | |
| 19fa995f-e474-4aca-af29-ac792b18d0de Norway | |
| 7179d44c-8c84-4339-98d2-ccd553c14603 Germany | |
| c6899d51-a1e3-4415-8b43-e75f6a0d8fce Germany | |
| 13d97e91-8ae5-4f48-adf4-8f5aa265e830 France | |
| 19efab18-d914-46d9-a0b7-69d248a1ed63 Sweden | |
| 0f10896f-c323-449e-8e77-2617f6138ef1 France | |
| f798b43e-773a-48c0-843a-ba3e253209b3 Germany | |
| 4a26995a-968e-4d1e-8655-8ddb19a2e29d Spain | |
| 0b0e2e5a-be7f-4f96-9ec2-59fcfc03ddeb Germany | |
| 0d5cc657-189a-4c4b-9b90-3ca81e1546b3 Greece | |
| f26929e3-15c7-4013-b8d3-99125eeb5775 Portugal | |
| fbeeb1f1-9e93-4921-bf64-f40d7779dbc7 Hungary | |
| 88e1c16a-4717-4482-9d2c-ec0ab26a0368 Belgium | |
| a9c4e16c-fcfe-4f8d-a664-4414a005673d Estonia | |
| 1c029d63-d382-44d5-ab07-27136cf0adc5 Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644605872 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644605872 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 53 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 800 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
