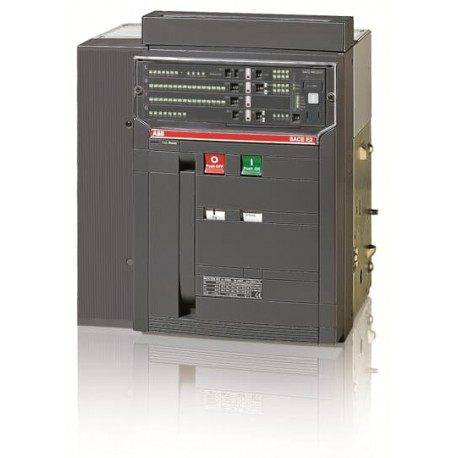

1SDA056026R1 ABB E2S 2000 PR121/P-LSIG In 2000A 4p F HR
1SDA056026R1
056026
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA056026R1 E2S 2000 air circuit breaker delivers sophisticated fault protection and switching control for large industrial power distribution hubs. Such high-capacity breakers are essential for maintaining electrical safety across extensive facility networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 58df1387-d6dd-48d1-ada9-301fa6c99d31 Italy
- Simplified SCIP: 2b5885ed-9796-439f-b0d2-4ce4f6877670 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644573669
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 386 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 56 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 58df1387-d6dd-48d1-ada9-301fa6c99d31 Italy |
| Simplified SCIP | 2b5885ed-9796-439f-b0d2-4ce4f6877670 Germany |
| 4cf9966a-cb76-4608-a65d-03b6fce9c720 Germany | |
| 07a1eaf4-8cc9-4e07-8d36-ad936aadab1f Hungary | |
| 6839e727-9de3-485a-a9e7-bc4c4c3415dd France | |
| d786b4ad-6fab-44af-8586-a28456c0d6af Spain | |
| 65d2580b-a083-40c0-9356-37f82db7247e Belgium | |
| f322fa6b-8d36-4951-8a9f-146198f37d39 Hungary | |
| 0ece5c10-646f-437b-89c4-b677e65cee4a Netherlands | |
| 72b94a43-a397-4639-b88d-00a750fea61d Czech Republic | |
| 318f4ab1-5fd3-4524-8d05-9757af105965 Poland | |
| b0d7c48f-7a34-454f-aa80-6078cd7ca9af Denmark | |
| 1515c936-5f05-4fa1-a3d2-9848eec93e3d Germany | |
| 6539fe90-cfc0-4ce3-9c58-94f2c402241b Croatia | |
| 48995978-dca8-4f73-84b1-eb44f9d29fc9 Estonia | |
| a018ce77-443a-44cf-a44a-af3bcd72b8c2 Portugal | |
| fa0af498-561e-42ae-800a-c807355e4eda Greece | |
| f4322e5c-61cc-4180-bc0e-eef85f4506fd Sweden | |
| 30ede91b-de0d-40ac-869a-f9b6531007b5 Bulgaria | |
| 0dca68fa-9c9a-4581-985b-07d2c72d64fd Poland | |
| d604e0fc-c5e9-465a-a5c8-ca6cae953357 France | |
| 47305d2b-fbf0-4266-ac2d-bdea9b93a4cc Sweden | |
| 43c6be57-7179-4ef9-87c7-2e81c0820052 Norway | |
| fb5f8f57-fd6a-444b-a856-a809d9cfe292 Belgium | |
| a6fe2cbf-ecbc-415a-937f-245738a52b9d Finland | |
| 67179751-d66c-4316-a941-671a0cdb2435 Germany | |
| 52aa501c-c166-47c0-9ef8-b8efc70a9147 Poland | |
| 306e166e-ccfc-499d-b2a8-db0b6d01ab37 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644573669 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 386 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 68 kg |
| Package Level 1 EAN | 8015644573669 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 180 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
