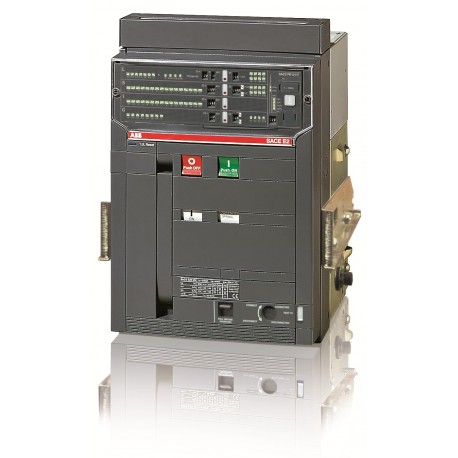

1SDA056033R1 ABB E2S 2000 PR121/P-LSI In 2000A 3p W MP
1SDA056033R1
056033
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA056033R1 is an E2S 2000 PR121/P-LSI In 2000A 3p W MP engineered to protect industrial electrical networks, transformers, and heavy machinery against overloads and fault currents. High-capacity circuit breakers provide essential isolation, selective coordination, and safety control in primary switchboards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 27c19221-3017-47f0-8e58-81f7a8e3eadd Italy
- Simplified SCIP: f0f4e635-0bde-4e31-9ccf-1820bde74668 Belgium
- Environmental Information: 9AKK10103A6076
- EAN: 8015644573737
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 27c19221-3017-47f0-8e58-81f7a8e3eadd Italy |
| Simplified SCIP | f0f4e635-0bde-4e31-9ccf-1820bde74668 Belgium |
| 2152abf2-ce94-44e8-ab1d-3f4129e3781a Germany | |
| 626c3259-18a4-4918-9f04-5da95cf78a97 Poland | |
| 03681977-4f65-4dfc-9e13-d616232948cb Bulgaria | |
| a45d2569-ea26-461f-b261-55faaef18822 Netherlands | |
| 9f3feaa0-ab30-4ad7-87c7-c279548ee62c Belgium | |
| 26da0d97-c1dd-4f18-b7df-8376189d4cdc Poland | |
| f8c70b58-d8e0-45c5-ae29-24f279315186 Czech Republic | |
| 0ef720aa-3a27-47c0-9b1f-8bc6cf452598 Hungary | |
| 167af209-22e3-412d-9bc9-d82d56319229 Croatia | |
| 01eedbf4-ff71-4e1d-8006-331ae3e06a83 Germany | |
| 8b2ad23b-7d9d-4597-b782-34c45b7f32f7 Denmark | |
| 87b2ae15-982e-4d98-9bbe-0fc2b0765c6b Germany | |
| 2a2ce4d3-b34c-4925-baa7-bbedd08ec71d Poland | |
| 8ab00a49-2af3-4ff3-a213-bbd9b5bbf148 Norway | |
| 459d390a-f9ce-41c2-a9d9-2888548c111e Finland | |
| b6971026-52c5-40ae-8f34-667c98d67371 Germany | |
| 27ee53ba-54a4-4d77-8fa5-b5d3c0240790 France | |
| 9cf72029-3b66-4cdd-b5a7-a88c7cc97ccb Spain | |
| ad6438e7-d11d-4f2c-bf94-9fc1357f4df0 Greece | |
| 1c26b67c-1e08-4e2a-bc8e-036f59e0296b Portugal | |
| 7dee91d7-4b0d-410d-84e7-75a8b8bb948f Sweden | |
| c7a1e50d-d547-4952-bf9c-0531dcf10f7f Estonia | |
| b02ae2b2-dda7-4d51-90fd-b090b754d3c3 France | |
| 8729f077-3290-41d0-a44b-6b9c3ad63f46 Germany | |
| 64e41ebc-bef7-4e42-8baf-de1a2a038a69 Sweden | |
| cfa7c71f-3dd7-473f-a060-969795014bbd Hungary | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644573737 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644573737 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 330 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
