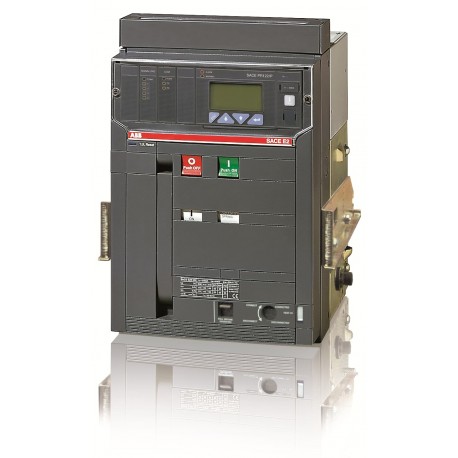

1SDA056004R1 ABB E2S 1600 PR122/P-LSI In 1600A 3p W MP
1SDA056004R1
056004
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for modular switchgear systems, the ABB 1SDA056004R1 E2S 1600 PR122/P-LSI In 1600A 3p W MP functions as a withdrawable air circuit breaker designed to safeguard industrial electrical networks. Switchgear engineers specify these units to ensure dependable isolation and precise overcurrent protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 9cd1d44d-17ed-4ea1-a017-60f3981a15f8 Italy
- Simplified SCIP: ae440568-2a79-43eb-82a5-8022bd2908a5 Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644573447
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 9cd1d44d-17ed-4ea1-a017-60f3981a15f8 Italy |
| Simplified SCIP | ae440568-2a79-43eb-82a5-8022bd2908a5 Poland |
| 762ef6c7-17ef-4081-b380-cd4d69d3550f Bulgaria | |
| dde8e9d3-e229-4d53-9b7f-fb98dd1b7ea1 Poland | |
| 80b076a0-5d7a-456d-8b14-4445edf86287 Netherlands | |
| 638a8e10-aa51-429e-b66a-cc9d5479807e Czech Republic | |
| ea914e68-47ab-4371-82f0-2d82a2f29a97 Belgium | |
| b40eb25a-5ab2-4a35-ae47-29033618cd49 Germany | |
| 0c9264b3-603b-4e85-b0a5-e1dbe4094a41 Denmark | |
| 9e75d7fd-bac7-49c9-a2c5-42fd4bceb28d Croatia | |
| b4df8107-c1dc-4a31-9aba-5415a4aabacd Germany | |
| 264a5e8a-85f9-418e-bada-0d8ac83a89b4 Hungary | |
| 45934cf5-f12b-48c3-b15f-6243e5714ec1 Poland | |
| 3079f488-8aec-493f-81ca-76ae76e2a462 Norway | |
| 1e246d9d-2e2d-414e-9357-b7c63bd09eeb Finland | |
| ca8b05a4-f3ab-4c38-87c9-7f5d20b28135 France | |
| 49d9f748-e1c3-4db1-9e0e-23766ea20b1a Spain | |
| 383fc13c-7786-4547-965d-490d72a41455 Germany | |
| 961eb800-a382-4cb5-9234-81af9ed4ed7c Sweden | |
| 0ba37155-6f0b-4cab-84fa-4c3eca0edf0d Estonia | |
| 4b893c62-dd23-4013-852a-4bf66ca67afb Germany | |
| 77379e32-673d-4397-b4f3-29a64d85fd68 Hungary | |
| 08c48267-4f8e-43fa-834f-f24a6012a32f Belgium | |
| ea246497-13ff-43f4-a8e6-0ae4961569de Greece | |
| 7cc4f486-79b2-4715-9f05-a190d19adbc5 Portugal | |
| d6373968-f2a7-4830-8a22-58e82e82fe16 Sweden | |
| d30ef157-d1a0-415b-ab2f-fa073684adf3 France | |
| 698b3da0-0d04-4554-be0d-725a44ee7de1 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644573447 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644573447 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 215 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
