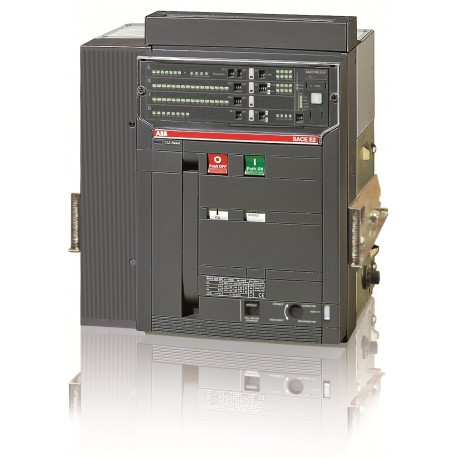

ABB 1SDA056010R1 1SDA056010R1 ABB E2S 1600 PR121/P-LSIG In 1600A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056010R1 ABB E2S 1600 PR121/P-LSIG In 1600A 4p W MP

1SDA056010R1

056010

ABB

1 Pcs.

E2S 1600 PR121/P-LSIG In=1600A 4p W MP E2S1600 PR121/P LSIG 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPdea3e35f-53f5-4aeb-8dc1-53ff7d316db1 Italy
Simplified SCIPc1cd8334-e8a9-4ac6-a64a-4bd8a1581c06 France
01c4ab19-64c9-4d27-8635-ab63f4f01536 Germany
12f213d4-fb6e-4096-9d61-a3c6137713af Germany
cf8a2de9-b479-4c16-bddc-1eba7481404e Sweden
af2d8af3-0099-4bcd-8f63-fdf6e5701080 Hungary
fa0f4f57-63be-4e25-82f4-e0510b7af869 Belgium
7b239e15-20f5-4431-8abb-c9052328c9f6 Spain
aac8264e-fa84-4f94-b62c-99c67d4329a7 Poland
03cb5872-33b4-4e7e-9193-2137ab6acd44 Netherlands
038c5af7-1b27-4021-ba56-a2b5e0c03994 Czech Republic
26f79948-cf78-4f78-93d7-6a23691431cd Germany
1b8001ca-1932-41f7-876e-7125fa56a636 Croatia
a1a7c682-1dd6-4415-8a4c-2c98e740159e Estonia
efa1175b-f5d0-4764-ac3c-310daba25d75 Hungary
7c79c54c-48bf-452d-a536-739b86cb7a0f Greece
75f87d9a-fd0e-4c70-af70-0f43cd4864e1 Portugal
4b3bcbff-723e-4722-8312-b32fb2752eab Sweden
f91c571b-18e1-4c64-b640-97b6ac7ea0dc Bulgaria
91e44ead-38ec-4f0e-b029-7a8d247cec8c Poland
fffce652-38c4-4bc3-a13c-09b44e767006 France
43041295-1964-4bd5-86d7-f76c87ac03b0 Norway
f1360984-5256-4325-98cf-a9ba8900de72 Finland
fbcb6396-0543-4215-8a6a-db3f3b8f58e8 Belgium
386e2ec0-5738-4be1-9ed7-a34d67673f37 Poland
52036250-0bac-49ae-a990-82476fca45aa Germany
0db85274-26ca-4a37-8cce-472dbef9f563 Denmark
363460d2-7287-40f7-b394-175e57194b67 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644573508
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width414 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight61 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight73 kg
Package Level 1 EAN8015644573508
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 12000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss215 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1600 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
