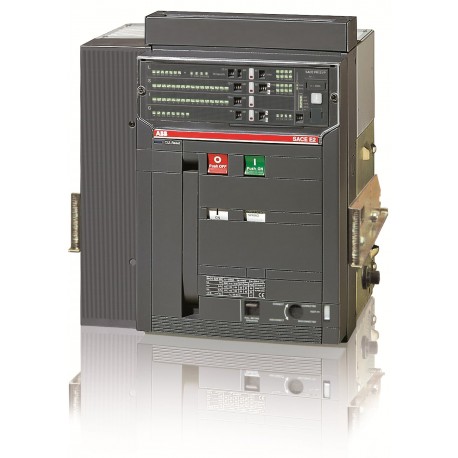

1SDA056009R1 ABB E2S 1600 PR121/P-LSI In 1600A 4p W MP
1SDA056009R1
056009
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA056009R1 ABB E2S 1600 PR121/P-LSI In 1600A 4p W MP is a four-pole withdrawable air circuit breaker produced by Abb for high-capacity power distribution systems. Air circuit breakers are essential in industrial switchgear installations to protect primary electrical feeds and manage large fault currents reliably.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 89cc9bc5-7514-4db0-a912-a794cd7bfbbc Italy
- Simplified SCIP: 43275e08-ed9a-42b4-9dbe-8dc128692c12 Belgium
- Environmental Information: 9AKK10103A6076
- EAN: 8015644573492
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 61 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 89cc9bc5-7514-4db0-a912-a794cd7bfbbc Italy |
| Simplified SCIP | 43275e08-ed9a-42b4-9dbe-8dc128692c12 Belgium |
| ca07ba5b-f992-42ea-9370-8e5190c2d377 Hungary | |
| 45d24f0e-e631-4deb-86c2-465b8a53d3bf Spain | |
| 544d2164-ab37-4501-9cfa-3e41d57222ec France | |
| dd79fbb6-2c45-4d22-b5cb-266fd4ff7b1b Germany | |
| fd04c8d3-8ee2-487a-98cc-b181d4963d8d Germany | |
| dc5d5c7d-446b-419b-a478-4d7d47dae0aa France | |
| b0d6d2da-f2ec-48c8-a511-b9d27684c865 Hungary | |
| 3b1ff053-d9ee-4ce8-95ae-13679d67feed Estonia | |
| dfb552ff-7e40-42d3-bef6-7e3c0f004df0 Portugal | |
| 07c99d30-9303-49d8-9ad7-ac6895e02daf Poland | |
| 430a00ba-d381-4638-bfe7-ac8a87d7ff51 Sweden | |
| 2fe04652-e9a7-482f-ab9e-1d5c45198df7 Bulgaria | |
| dddbc597-7fd9-4084-abb6-8dbd7e41162a Greece | |
| 383d863e-103e-415c-800a-392b0ef914f3 Croatia | |
| 0c4764b0-8cdb-4936-85b3-bcb52f68f73c Germany | |
| 9e224cfc-d1d7-4705-8945-8e57d718698b Denmark | |
| 7db29cbe-5670-4e31-ba35-651063b858f8 Netherlands | |
| cddda2b7-0447-445b-bae4-22584d96f9d6 Poland | |
| 1b1db700-3802-4c0b-84d0-7dedb8a06c65 Czech Republic | |
| 37458f84-6e50-420c-8e8c-1bfc4a41e013 Sweden | |
| ee5da8ab-e420-41a8-a402-de17f907b63c Germany | |
| 66fa5fb5-0a87-49fb-9116-cf66970d4fc8 Finland | |
| 0f203bb9-cee4-4f18-bcbc-69429ae48a97 Belgium | |
| ca611777-6099-4525-ac9e-71c2394ad1a0 Norway | |
| df456939-bd64-46da-bb4d-ea102175ffdd Germany | |
| aced439a-ac5a-4d7d-a50f-9412f2204443 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644573492 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 61 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 73 kg |
| Package Level 1 EAN | 8015644573492 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 215 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
