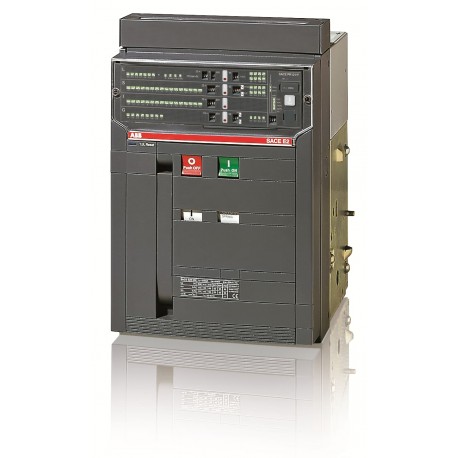

1SDA055985R1 ABB E2S 1600 PR121/P-LSI In 1600A 3p F HR
1SDA055985R1
055985
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 1SDA055985R1 E2S 1600 PR121/P-LSI In 1600A 3p F HR is an air circuit breaker utilized to interrupt high-capacity fault currents and maintain network safety in major power installations. These robust switching components are typically deployed in primary industrial switchgear assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: dbab15a6-a358-46bc-aaa4-f15c1b9dcc6f Italy
- Simplified SCIP: ac2251bf-bb71-4b03-9187-08a77b08778e Sweden
- Environmental Information: 9AKK10103A6076
- EAN: 8015644573256
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | dbab15a6-a358-46bc-aaa4-f15c1b9dcc6f Italy |
| Simplified SCIP | ac2251bf-bb71-4b03-9187-08a77b08778e Sweden |
| 5cd98092-c402-4735-ad82-ce4006f5cffa Germany | |
| 84c04570-6995-47eb-855e-cde9245aebbf France | |
| 8cb6c7da-a0ae-4a37-8f14-f6992fdb0446 Norway | |
| e2fd965b-74bb-4d9a-b201-8a0095c3128c Poland | |
| 3eb93673-de81-46c7-8c39-a7e8eaf65709 Poland | |
| 2286544b-8780-4a63-83db-17e4efdc8e72 Spain | |
| 8649ee25-ed0b-4727-ab45-5d1e441b1e78 Belgium | |
| 11570fcf-f77a-4593-907f-c4ec4be4e35f Netherlands | |
| aa980317-1919-4ad5-8b41-219915bdc722 Poland | |
| 9a0dd85f-4188-4d4d-8615-74a0907393aa Germany | |
| 108a19cd-4353-4518-801d-a883e94b4e22 Greece | |
| fe2781ff-6fe1-41cf-a960-e14158f2e23a Croatia | |
| f76c6d8a-3f4d-4981-9a8a-a1e67537e842 Bulgaria | |
| d85a8d93-c707-4b4f-b6d4-3ec8b4c4b185 Czech Republic | |
| 38da86ca-e924-44e0-b689-0d43cf211188 Finland | |
| 4d57d789-33f4-43d9-b12d-4c2c959abd8c Denmark | |
| d1691218-c52c-4503-929c-0f8fcfe89db3 Portugal | |
| 2c49d23a-e1fb-4fe5-ac7d-6816a0a221c0 Belgium | |
| 53f7d085-9565-45be-bfeb-b7baceea0878 Germany | |
| 83aab5b4-78f9-4ff6-b53e-0620d481ee36 Germany | |
| 2193be21-cd37-4da7-b555-fd2cb270d444 Germany | |
| 44299d5b-c437-4cca-a22d-b592dd99ed36 France | |
| a47f8ac9-890d-4d5e-bf88-250917a9752b Hungary | |
| dedcd782-dbed-4601-bc0f-aa91bf2de30a Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644573256 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644573256 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 115 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
