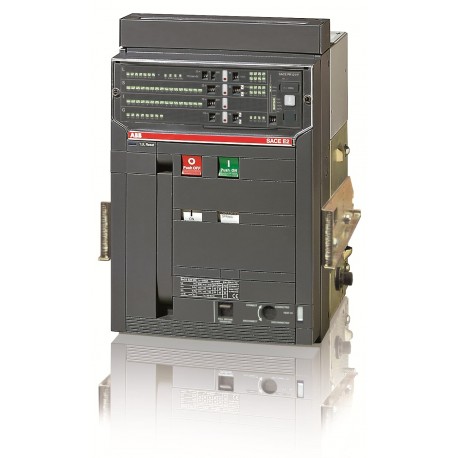

1SDA055969R1 ABB E2S 1250 PR121/P-LSI In 1250A 3p W MP
1SDA055969R1
055969
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A withdrawable air circuit breaker, specifically the ABB E2S 1250 PR121/P-LSI In 1250A 3p W MP, provides robust circuit protection and isolation for heavy industrial power distribution infrastructure. Units in this category are deployed to safely manage high current loads and disconnect downstream faults in complex electrical switchboards.
Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: b8923c4e-4edf-4ee0-a8a5-ce888bdea016 Italy
- Simplified SCIP: 935a0539-7451-4d2b-8da2-56bba1b4aac1 Greece
- Environmental Information: 9AKK10103A6076
- EAN: 8015644573096
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | b8923c4e-4edf-4ee0-a8a5-ce888bdea016 Italy |
| Simplified SCIP | 935a0539-7451-4d2b-8da2-56bba1b4aac1 Greece |
| 2cf80e04-3d63-4687-aa5d-f8df1731ad41 Portugal | |
| bcb3ddad-1b5f-4294-b4a3-cdc92d032f63 Sweden | |
| 5370f290-1efa-4bf7-86e9-2bd890247151 Germany | |
| 1735c9ca-5eb6-471e-bed3-b463f25a948b Estonia | |
| 380ea8bc-0926-4e10-9abc-236f2ae13964 Belgium | |
| 73816ce3-11dd-47d6-a565-f9ac5a046574 Hungary | |
| 641a63ae-40e0-4c06-b87b-93ac072efd47 Germany | |
| 20afd23c-6781-4ecc-8273-5169df2c065a Sweden | |
| 23d9d229-5187-46d6-acd4-8644d4f1b5cb Spain | |
| a0877613-7b28-48f0-87d0-337289150db9 France | |
| 7c611723-1882-453b-9cc7-cdf1165b9273 France | |
| 4a5e2b0b-4fc1-42f0-8096-2e6aa7ae378f Germany | |
| e8606d8a-605e-4677-b27c-7f90933a2f58 Poland | |
| c1c86850-2755-4cda-bef5-53c5f11f6464 Bulgaria | |
| ef0edccb-a69d-46d4-946c-5b7363ab3667 Netherlands | |
| 9af41b94-9668-4771-9278-f26ee207640a Poland | |
| c3e82fef-5690-442b-8e22-1bc60a2ddd6e Finland | |
| a3e6448a-0f59-4c28-9a18-12c26688606d Denmark | |
| c83bb35e-074a-4379-9d6b-038619404f6f Norway | |
| e39c1cd7-22a4-438d-889d-66d4f62018e8 Poland | |
| 08360256-9f22-43a5-ac53-8fdfd624635f Belgium | |
| c6af1a09-682e-42a5-9a2b-2c6a8fbbdd42 Czech Republic | |
| 66cd9252-6811-4654-bee9-1b31b6221ff9 Germany | |
| 501961e9-ec07-4db7-a26f-f3c3a5d4e1ae Croatia | |
| a94528e3-644c-46d9-8fc4-6aabbaa1bcd5 Germany | |
| 1aa8e94e-42bf-41fd-8216-26542bca3ded Hungary | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644573096 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644573096 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 130 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
