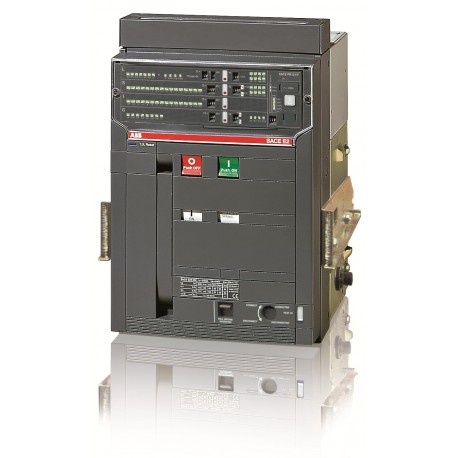

ABB 1SDA059306R1 1SDA059306R1 ABB E2S 1000 PR121/P-LSI In 1000A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059306R1 ABB E2S 1000 PR121/P-LSI In 1000A 3p W MP

1SDA059306R1

059306

ABB

1 Pcs.

E2S 1000 PR121/P-LSI In=1000A 3p W MP E2S1000 PR121/P LSI 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB part number 1SDA059306R1 identifies the E2S 1000 PR121/P-LSI In 1000A 3p W MP withdrawable air circuit breaker, designed for high-performance power management and protection in electrical distribution grids. Engineers specify these units within main switchgear panels to interrupt heavy fault currents and facilitate safe maintenance isolation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): Document availability on demand
  • Environmental Information: 9AKK10103A6076
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • EAN: 8015644616670
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 324 mm
  • Product Net Height: 461 mm
  • Product Net Depth / Length: 396.5 mm
  • Product Net Weight: 49 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 515 mm
  • Package Level 1 Height: 600 mm
  • Package Level 1 Depth / Length: 515 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Environmental
Environmental Information9AKK10103A6076
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
EAN8015644616670
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644609139
Additional Information
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3
Power Loss83.2 W
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
Rated Current (In)1000 A
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 65 kA
for 3 s 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 85 kA
(400 V AC) 85 kA
(415 V AC) 85 kA
(440 V AC) 85 kA
(500 V AC) 65 kA
(660 V AC) 65 kA
(690 V AC) 65 kA
Rated Uninterrupted Current (Iu)1000 A
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
VersionW
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
