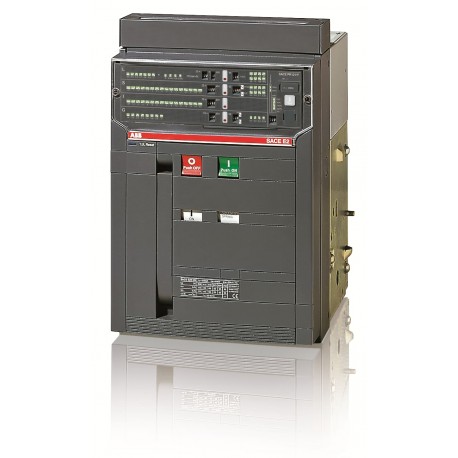

1SDA059301R1 ABB E2S 1000 PR121/P-LI In 1000A 3p F HR
1SDA059301R1
059301
ABB
1 Pcs.
E2S 1000 PR121/P-LI In=1000A 3p F HR
E2S1000 PR121/P LI 3P F HR
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SDA059301R1 power air circuit breaker provides reliable overcurrent protection and switching functionality for heavy-duty industrial switchgear. These devices safeguard high-capacity electrical infrastructure from potential fault damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 16f380c4-fc4b-4835-8c6a-bc09e51bb75f Italy
- Simplified SCIP: a38f5690-c17f-438e-977b-ce760a21c72c Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644616625
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 16f380c4-fc4b-4835-8c6a-bc09e51bb75f Italy |
| Simplified SCIP | a38f5690-c17f-438e-977b-ce760a21c72c Poland |
| 69b3cfda-6623-4729-9d20-1014e42e7fcd Germany | |
| 0fff672d-f69a-4031-ae11-1076197ff9d6 France | |
| 8903075a-4a61-4f72-b2f4-6ae2cdf3a4b0 Sweden | |
| 9eeda9aa-0cea-414b-9646-e5a80e87146e France | |
| 28f54524-35e9-415b-9aaa-f14525cb512b Germany | |
| 52ded9a7-bf1c-4107-ab72-5d32801ff206 Spain | |
| 8a50d14c-8479-426b-afdb-9aa74b58f4e6 Sweden | |
| 33a076af-e0ed-4401-8678-241fee00bb54 Bulgaria | |
| a4cf412a-ed39-46b2-840b-7eba868ea980 Estonia | |
| 7c2afcc3-c896-4465-a404-9e4b9a79e4a4 Belgium | |
| 66843210-7fe1-49f0-890c-ede0a2d0bf47 Greece | |
| 9de4d0e0-fa50-4449-b5b5-e72e99c4eeb5 Germany | |
| 76fb9719-db26-45e5-bc90-dad0192efff6 Portugal | |
| c4c1ece1-f70c-4678-b1b3-1f80aa9d576b Hungary | |
| 7cfbd388-5fdd-4450-97d9-6c5950dbf0e5 Czech Republic | |
| b96d0443-b01d-4191-838f-76ceeb532791 Denmark | |
| a9171448-f3e0-49c2-9a69-80b840f01acb Finland | |
| d9baab8a-4376-4d0a-b124-6b273177e7d4 Poland | |
| e8164339-e708-46de-90f0-2eec53c13ac6 Norway | |
| d5c3978d-6527-4cf8-9b05-3044c4d262f2 Germany | |
| ffaa83be-1408-432c-a3b0-fe2b0cb654d5 Hungary | |
| 48a81848-6ab1-46ad-a086-a765869bb0f5 Croatia | |
| 64f432a5-3f95-4933-a274-a67c653956e2 Belgium | |
| 312051ea-4e51-48bd-912e-c86c574ee1f1 Germany | |
| da2ad21a-ad3f-43e1-90bb-1a50932d267b Netherlands | |
| 767095c2-5231-4759-8b05-b5ed380bbca0 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644616625 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 44.8 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 65 kA |
| for 3 s 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 85 kA | |
| (400 V AC) 85 kA | |
| (415 V AC) 85 kA | |
| (440 V AC) 85 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
