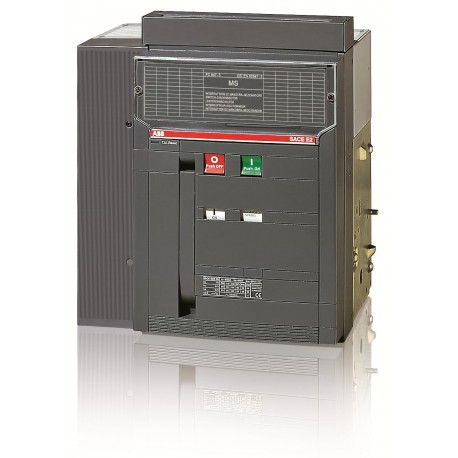

ABB 1SDA059299R1 1SDA059299R1 ABB E2N/MS 1000 4p F HR new View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059299R1 ABB E2N/MS 1000 4p F HR new

1SDA059299R1

059299

ABB

1 Pcs.

E2N/MS 1000 4p F HR new E2N/MS 1000 4P F HR

Connectors > Switch disconnector
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644616601
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width386 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight56 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight68 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameSwitch Disconnector
Product TypeSwitch-disconnector
VersionF
Technical
Current TypeAC
Electrical Durability15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss44.8 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1000 A
Rated Operational Voltage690 V AC
250 V DC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kA
for 3 s 42 kA
Rated Uninterrupted Current (Iu)1000 A
Rated Voltage (Ur)690 V
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE2
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
