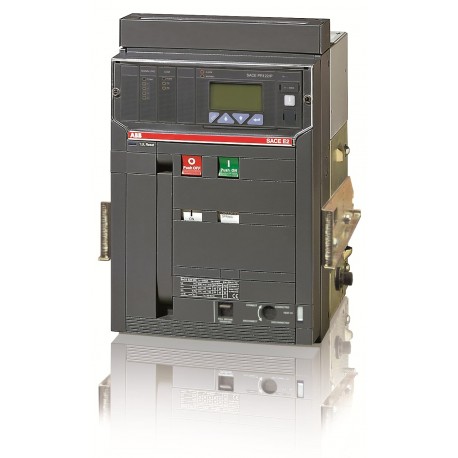

1SDA055939R1 ABB E2N 2000 PR122/P-LI In 2000A 3p W MP
1SDA055939R1
055939
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA055939R1 air circuit-breaker provides high-capacity current interruption and system protection for large electrical distribution networks, safeguarding critical infrastructure against severe fault conditions. Facilities utilize these robust breakers within main switchboards to maintain reliable operational control and selective fault clearing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: da21741f-8239-4307-a3c1-e1dfb42b7d5c Italy
- Simplified SCIP: 96e79efa-0d63-4c6c-a298-48e57f5d9d79 Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572792
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | da21741f-8239-4307-a3c1-e1dfb42b7d5c Italy |
| Simplified SCIP | 96e79efa-0d63-4c6c-a298-48e57f5d9d79 Bulgaria |
| c6fea299-5bdc-4959-b060-688ebeea4bf3 Poland | |
| cca9da70-6cf9-41c4-a95a-edf58cd254f6 Belgium | |
| 13271bb1-8c3e-49d1-95bc-8cb3d8d1173c Germany | |
| a13b1bb1-c48f-4db6-aec4-9049b59b6029 Greece | |
| 62fc18ef-9382-44bb-b602-5f10bbf07236 Sweden | |
| 43c5a648-6cb2-412e-bb14-961d94e7544e Spain | |
| b33730c3-0c80-4610-863c-64a7b32b5df5 Estonia | |
| b6d3a921-3503-4c86-9fba-b8d53ca9aff6 Germany | |
| 90b6f191-265c-4d22-befa-3c2cd0ea69e9 Portugal | |
| 081c1db7-df42-4385-b07d-0dc45c87a609 Hungary | |
| eca5b796-5c19-47a0-8554-265c6991393f Germany | |
| 03c65b5e-3701-4601-9925-57ff169c59b8 Sweden | |
| 26fa2eb9-0d5e-40fa-b385-ce236ee90146 France | |
| 490ff118-2ad9-4d62-90f5-f71519974bc0 France | |
| a142e574-9e0a-464d-810f-151f11d16aae Norway | |
| a6ba937e-13a8-479b-b3e8-f6fbff85437f Denmark | |
| acd6da1c-687d-4cc8-9dee-f67ec8ce6bab Belgium | |
| 24fd23a5-6588-434c-adfb-239adc193ac8 Germany | |
| 35bd696b-d5da-4c17-9701-3c62ad604664 Poland | |
| a0d899a9-f67d-434f-9c1a-bc35d7b54151 Finland | |
| 8df0dd29-f312-4546-9cd2-09189ab34d3b Hungary | |
| f12fa134-8bb1-44f6-a7a6-fcae4da4a899 Croatia | |
| 179f391f-0888-42e5-a806-4b2fbab17f58 Netherlands | |
| 6dd4ce31-44eb-47e6-8fd2-85263c557ce3 Poland | |
| 6adc9902-d28b-4c6f-b356-1e2217c9c4ce Czech Republic | |
| ad00231a-64ac-4f16-87e3-35e6f9a5eadb Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572792 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644572792 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 330 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
