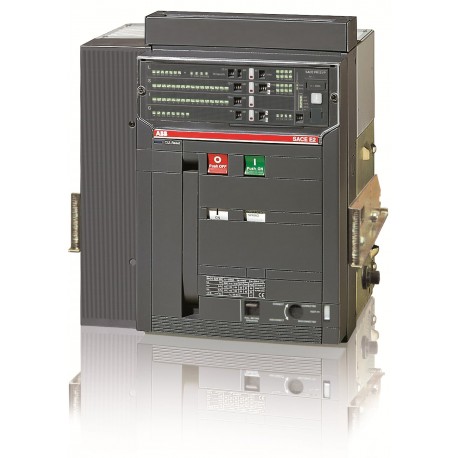

1SDA055946R1 ABB E2N 2000 PR121/P-LSIG In 2000A 4p W MP
1SDA055946R1
055946
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA055946R1 ABB E2N 2000 PR121/P-LSIG In 2000A 4p W MP is an air circuit breaker designed for heavy electrical installations to manage high current loads and provide reliable fault interruption. Such components are typically housed in industrial switchgear to protect complex power distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 33168694-0610-4e14-aab3-5dad8cdb2731 Italy
- Simplified SCIP: 3adeb4bd-7f30-46a5-b2c0-0fb585310723 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572860
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 61 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 33168694-0610-4e14-aab3-5dad8cdb2731 Italy |
| Simplified SCIP | 3adeb4bd-7f30-46a5-b2c0-0fb585310723 Germany |
| c9171d61-a398-4754-b68a-68980c23aa29 Germany | |
| c036e621-f37b-4b5e-8641-673cdaad3fae France | |
| 37b1e2ba-8de0-4ae2-874d-711404c81592 Hungary | |
| 4933d27c-6a23-4537-8c83-b24bf0166fb5 France | |
| 21234018-2aa0-4d55-9cc4-2312f932d75e Spain | |
| 31f41463-9d94-4660-adb1-a0bdd6ed274b Belgium | |
| 975544f5-cd99-4f1e-9fd8-91fdde5e498b Finland | |
| 8b9d249b-6379-4e7e-99c3-acd38277936b Norway | |
| 2b5f3215-e665-4e7e-952a-183a700dc0fa Belgium | |
| d9bfa5c7-ab30-4424-b3fe-e9e6364e091b Germany | |
| 842f4d8a-858d-4617-99f4-3a08b3d1f0f6 Germany | |
| 808108f8-02d2-41cc-9256-0bccb7c958a2 Poland | |
| 8b1507ff-6e9b-4d5b-be7c-5f99a78829dd Poland | |
| 5ef23ab0-079c-462d-8684-0fa11ca587cc Czech Republic | |
| 800ef83b-d581-451c-bfb0-edf4fc53fd96 Germany | |
| 5b6599bc-e307-485b-86cd-f338974a9759 Croatia | |
| 2993668c-60d9-49d4-883a-16a5c832c40f Denmark | |
| 7c0ca716-b174-4770-894b-0eeac6cfc1e8 Estonia | |
| 3e698a4c-89fe-4e22-af94-fe0b9d0a1ed6 Netherlands | |
| e801c46d-e08f-4322-9bc9-adf397eac71b Hungary | |
| b7a164cb-f195-474b-addb-d823a0038dcf Greece | |
| 7e96f0f9-93e3-4e47-af14-1946343c131d Portugal | |
| 6fd22900-37ad-4510-b59a-f89f97dd2795 Sweden | |
| 08581592-81fc-4f95-9102-cb6b4bb3f32c Poland | |
| 7520e6ea-a8bc-49b4-8128-eaea9d86dd72 Bulgaria | |
| 7b7a0357-b29b-4b28-9689-ba7c7473d9a8 Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572860 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 61 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 73 kg |
| Package Level 1 EAN | 8015644572860 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 330 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
