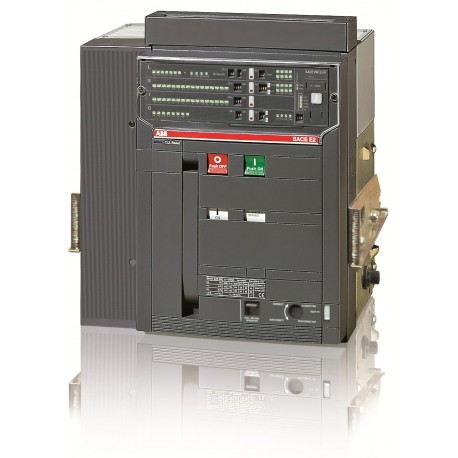

1SDA055945R1 ABB E2N 2000 PR121/P-LSI In 2000A 4p W MP
1SDA055945R1
055945
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA055945R1 E2N air circuit breaker is designed for high-capacity industrial electrical networks, offering reliable fault interruption and selective coordination. Withdrawable breakers enable secure and efficient maintenance routines within main switchgear panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 9cf54a39-846e-4379-80f0-2ce4625723f0 Italy
- Simplified SCIP: 2f060c74-6943-4c27-8fa7-3d598767faba Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572853
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 61 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 9cf54a39-846e-4379-80f0-2ce4625723f0 Italy |
| Simplified SCIP | 2f060c74-6943-4c27-8fa7-3d598767faba Germany |
| 27232e6c-fd2c-44c1-a8be-6d727133efd5 Germany | |
| c098b7f9-ee6e-4364-9664-1e8e3f6edf32 France | |
| 9af9ca29-d6bf-4355-b847-c31fa8a52c69 Spain | |
| aaa62bb5-eb5d-4d1d-bc17-ac144d468fdc Hungary | |
| ec1512d7-cf53-4bab-9b79-94358d947470 France | |
| 632e15ca-1a36-45a6-abf4-3b50dc583fe2 Belgium | |
| af16d374-4382-47c3-ad5f-0bae0b2b86be Netherlands | |
| 5182c61d-1a9d-4193-ac91-01c46fe3774c Poland | |
| 471b1aea-a886-43ae-96df-f0556a2937c1 Czech Republic | |
| cd970578-d1bb-44b0-930d-dcd61c2b8af0 Denmark | |
| 5fc16c71-bb05-4157-bde4-c7651b711bb5 Germany | |
| 7786c63f-8555-4ba1-8cc8-cf61c903dc6e Croatia | |
| 617e5338-6b4b-4cfe-9724-14bf8e6ff1a2 Portugal | |
| 7b5a0651-adb6-4420-bac4-deea65048204 Greece | |
| fab0c1ab-5add-4399-b994-9816c7baa90a Sweden | |
| 0034aed9-e999-4870-8dd5-3256a3192248 Poland | |
| bdaaf8bb-6b93-4bfd-9638-981d5f11d763 Bulgaria | |
| aefd8844-645b-4c3d-ab98-ceb2a3766c0d Sweden | |
| 8c7c0546-d4f5-4e4c-b4c8-4f822a16155c Estonia | |
| 67f4584d-e7fb-4e85-ac52-e1a46a41c984 Hungary | |
| ac065053-fdae-4cf3-82b9-d1af9449291c Germany | |
| 78f84ab2-e353-417a-bb10-830ae1680e77 Finland | |
| 8a0ecec9-8b7e-490b-81fa-d90f0adc050c Belgium | |
| 0da88b22-78ba-439b-8011-385157bdbcae Poland | |
| 5dffa9d5-64ff-486f-9cfc-2eca4cad0cb3 Germany | |
| 6d53396e-6332-4c73-aae7-2a018c586a4e Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572853 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 61 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 73 kg |
| Package Level 1 EAN | 8015644572853 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 330 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
