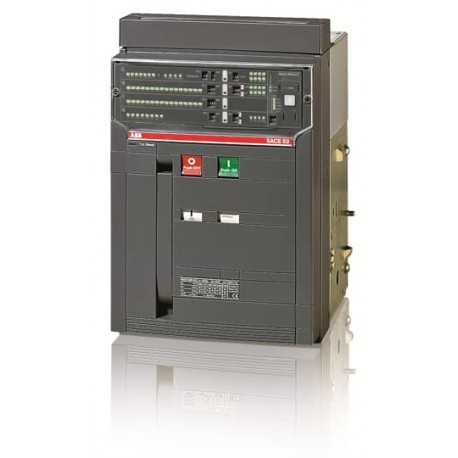

1SDA055921R1 ABB E2N 2000 PR121/P-LSI In 2000A 3p F HR
1SDA055921R1
055921
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for industrial power distribution, the Abb 1SDA055921R1 ABB E2N 2000 PR121/P-LSI In 2000A 3p F HR air circuit breaker provides essential protection for transformers, generators, and heavy machinery against overcurrent and short-circuit faults. Industrial facilities rely on these robust switching devices to maintain operational safety and isolate electrical sections for maintenance.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: f7ac5e4e-2d89-4d07-9bde-fac473536cc9 Italy
- Simplified SCIP: 08c1bde2-5096-49f1-8262-9f02434c8452 Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572617
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | f7ac5e4e-2d89-4d07-9bde-fac473536cc9 Italy |
| Simplified SCIP | 08c1bde2-5096-49f1-8262-9f02434c8452 Bulgaria |
| 58de06a4-c18e-433f-b99e-4a38114283a6 Poland | |
| 8e3a98d8-ae1f-4509-a661-c6781819c4a6 Germany | |
| adf1ab6a-21c3-497a-8715-475b3f443d57 Denmark | |
| 45538f36-8fa4-49e9-939d-0f741de22e56 Finland | |
| 44bbc6b1-1ecd-407c-84c3-bc00b831b7b8 Poland | |
| 7366ab53-881d-4bc6-9d78-994a2060bd27 Norway | |
| 9ec23c8c-ee18-40b7-b889-d1f81d946b9a Germany | |
| 1a2cd2d8-ca9f-4830-b860-c45f96bb3ca8 Croatia | |
| 03bdcdee-ba25-4e95-898b-c18b69299d90 Poland | |
| 8b4f966d-2bf9-49db-a8c7-a66327b10304 Czech Republic | |
| 38e6a7fa-f48b-459d-885e-faaf69c22471 Netherlands | |
| b649f417-d0bf-4297-b207-281b6b7999d5 Belgium | |
| 62cb4305-5dd6-4644-86be-0839664465ef Hungary | |
| afe1eea3-08c5-46ae-b78b-48aea845f778 Belgium | |
| 0599d42d-bd24-4a9c-b7dd-b2e50fa69f14 Germany | |
| d3fd572f-f711-473b-8dc4-af2bbefa9778 France | |
| 52f5f780-bfa1-431a-94b8-d15768870918 Spain | |
| bada375c-ee8e-4526-a573-88fbc1794aa6 Portugal | |
| 0c2e8f6d-7c0b-4584-bf76-e11c55ed9ff1 Estonia | |
| ca36793a-a123-4d24-a944-7f00037e290e Sweden | |
| 1de0924f-44ea-49a6-bc6a-12499583a1d6 Greece | |
| 01895899-7332-49d2-b3a1-dc35f8b3c871 Germany | |
| cc3759b7-ad47-498b-8506-e8b2e31fae4f Hungary | |
| 31b09e43-b71f-418a-94e2-0673a155ff56 Germany | |
| 7913be51-d5d1-47d0-857b-9e51865da6ec Sweden | |
| 27a65e86-ead4-44bf-bc5e-297d7689fdc6 France | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572617 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644572617 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 180 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
