> ABB > Service Breakers > 055920

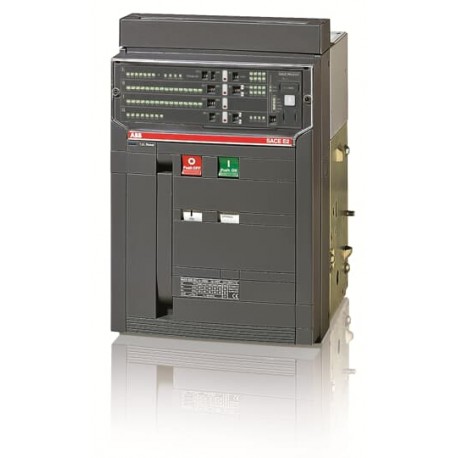

ABB 1SDA055920R1 1SDA055920R1 ABB E2N 2000 PR121/P-LI In 2000A 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055920R1 ABB E2N 2000 PR121/P-LI In 2000A 3p F HR

1SDA055920R1

055920

ABB

1 Pcs.

E2N 2000 PR121/P-LI In=2000A 3p F HR E2N2000 PR121/P LI 3P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP70d1253c-f3bd-4431-82d3-c359c48166e6 Italy
Simplified SCIPb8d1ce9c-ecb0-47ca-bd20-b743046c6d05 Germany
29c488b4-960e-4785-b1f6-816bbbde232d Poland
d3db9f14-5c84-4577-8b83-77852c786aa0 Bulgaria
8abad4f7-75d8-4fb7-b404-f6d614f209c4 Norway
17a088cc-2667-4073-8dfe-6dee87e16491 Finland
60b873ad-7629-4d28-be90-37401c91f3eb Poland
a7c98539-807b-49c8-849f-abe791a76c23 Croatia
bc2add73-d551-4713-bad7-5197f82af50b Germany
22056056-334d-4049-a1e0-2fa3b9334791 Germany
3a88aba4-6281-4f66-8d0f-7a0cdfb8c2dc Denmark
e9640736-edc7-4739-a4c4-78277da1b041 Czech Republic
ea3e6ccf-e9aa-4579-a7c8-0628b5b50fb2 Belgium
9a0d197f-302c-4452-b3e5-7acba401c2b6 Poland
ad13791e-731e-444f-bc98-897f461ac9c4 Netherlands
38206deb-91e9-4426-957b-0feea76261d1 Hungary
216139ac-70e8-4cf0-b978-b9842e50cecd France
d09ec8d7-8927-4554-b5b0-6e18f96327eb France
47cc794a-87ed-46fc-abf1-4c2823a0b92b Spain
9b506489-a866-4e79-acd6-1afe8fedd456 Germany
05c56718-605f-4610-99a7-411f17758e0a Sweden
71296fff-e67d-4664-8af4-61ea8f42b5c8 Estonia
c2652019-75c3-4284-a51d-55083975355e Sweden
ffab71f3-416c-400d-a3cc-d8e9da773f02 Belgium
a6f8c3b5-2206-486a-8667-0bc2eade6a74 Hungary
4067bc62-7511-4001-b31b-e845c7a3d014 Greece
b58c592c-2e28-4b5b-8c9c-d6c487fcc272 Portugal
fdd84783-e560-418e-b3b6-0d8f693281c2 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644572600
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width296 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight45 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN8015644572600
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss180 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LI
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE2
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
