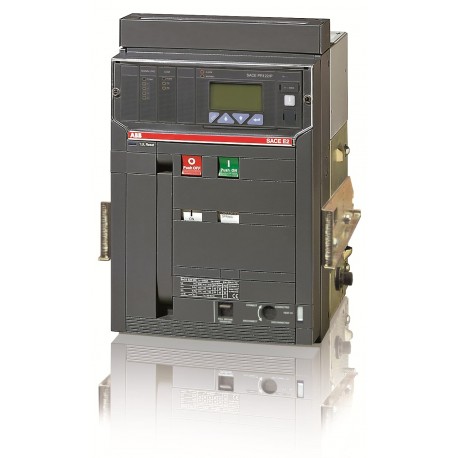

1SDA055908R1 ABB E2N 1600 PR122/P-LSI In 1600A 3p W MP
1SDA055908R1
055908
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB air circuit breaker provides critical electrical protection and isolation capabilities within high-current industrial switchboards. Engineers utilize withdrawable breakers of this scale to securely manage and isolate main power feeds during routine plant maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 5a728fab-a5da-4db7-a9be-2a68a146ce90 Italy
- Simplified SCIP: 4ddea00f-ac1f-49be-b9a6-2ccd5b535144 Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572488
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5a728fab-a5da-4db7-a9be-2a68a146ce90 Italy |
| Simplified SCIP | 4ddea00f-ac1f-49be-b9a6-2ccd5b535144 Poland |
| 6e021cbf-62f5-4797-8cd9-9ec45321f83b Portugal | |
| b812cd5c-eff5-43ff-88f2-cf2cc307b144 Germany | |
| f53151fe-645f-41fb-97ef-e697ca0a37c7 France | |
| af92524d-4cc4-48d5-b916-74174d64d2c4 Germany | |
| f483f681-cdb9-4709-a517-2fafc739ad51 Sweden | |
| e2d3dc60-7ef2-42ef-bb29-365cc1e686f8 Germany | |
| 38ec98d6-ada3-44d7-939a-cd415ffeb699 France | |
| 4a486ef9-cbad-4254-95d7-ab37ff39fdfe Hungary | |
| 93395c61-8349-4fbc-b267-a12301bd7fd3 Belgium | |
| 58187b95-2c82-4d3b-8094-a895d8e75a42 Greece | |
| 64b1ae89-ed1e-4d43-a751-8d42ee802d34 Estonia | |
| faa3cfc3-aed9-40cf-8918-746041e5470b Sweden | |
| 4cd7b229-5877-4383-a203-0bc1a84b4064 Spain | |
| c8168fdf-b86c-4e53-a731-ecc40baf5c22 Belgium | |
| 84f6bdb3-eaa1-482a-941d-df6dd334242f Netherlands | |
| 796afade-6595-4317-97e6-0454311b2160 Germany | |
| ebeb24f3-66ba-45a7-b6d7-1af6d21b8cdb Norway | |
| 21c056c1-2361-4d3a-8b70-2dc2fd8383d8 Finland | |
| afed35df-4328-48c6-a853-83c51226a332 Germany | |
| 7ec93ae0-b4ad-4f4d-b529-6e19b1180dc0 Hungary | |
| 3d872cbb-ead4-4e82-bf41-b107aa25e002 Czech Republic | |
| 918dc824-b017-4ebb-8c55-0e4d6aa0fcaf Poland | |
| a49ed649-b8ff-4aed-835a-75dbc12bb91b Croatia | |
| 51f643d0-ce49-464e-bd63-478923ec6b90 Bulgaria | |
| 83ee4e1e-1540-4060-9863-a32dc599cf43 Denmark | |
| bd89eaf4-b948-4ec4-a930-85e91a90e689 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572488 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644572488 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 12000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 215 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
