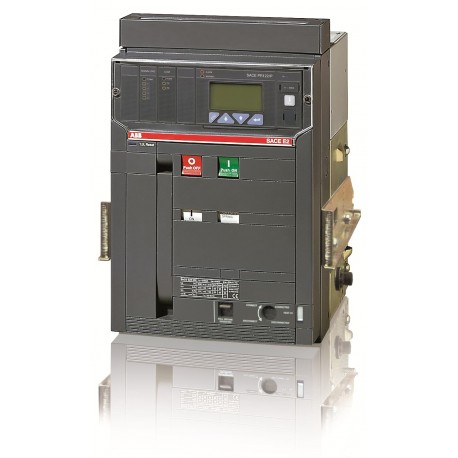

1SDA055876R1 ABB E2N 1250 PR122/P-LSI In 1250A 3p W MP
1SDA055876R1
055876
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA055876R1 air circuit breaker serves as a primary protective device in complex electrical distribution boards, interrupting hazardous fault currents safely. It provides reliable switching and isolation capabilities for heavy industrial and utility applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 92bea889-b7eb-4800-9dab-dde483c86e30 Italy
- Simplified SCIP: 151dd933-9b43-47e0-a2b1-209f6ff44457 Sweden
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572167
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 92bea889-b7eb-4800-9dab-dde483c86e30 Italy |
| Simplified SCIP | 151dd933-9b43-47e0-a2b1-209f6ff44457 Sweden |
| 7056de55-d85c-4176-8ed9-103bfcd12bfe Spain | |
| beda0c61-aea7-482a-bb48-0a58768c763d Germany | |
| 4a9c301a-31b9-49c3-8d03-c54afca79320 Bulgaria | |
| 7893a62b-0baa-4c8e-8cb9-0526a84e7456 Poland | |
| ec9b2aa2-41e9-4450-8626-c830f447f25f Belgium | |
| ee52aa44-1849-4f28-be5d-8c8ecb3c6095 Poland | |
| 42c379e2-df18-49da-aa58-0633886a17c1 Czech Republic | |
| a12c3421-70ce-4cdd-8b14-9bfd631c2923 Netherlands | |
| 0c72fa02-c63e-496f-a996-e73c9cccdfab Hungary | |
| c7ed2f06-cabe-4592-884a-bd16a5eb44e3 Portugal | |
| e2bd9f52-7cc1-4f96-8993-e206ca4f2a08 Poland | |
| f9ad9fea-c29f-49d3-aa13-3a08af708144 Norway | |
| 4fd37fac-3ba3-4b6c-a805-b8e232e43f2d Finland | |
| b8990478-5714-4e5a-8915-4de408b75c47 Germany | |
| 6adcdd68-077c-470e-ae61-65f35a8ec632 Denmark | |
| 1869c2d7-7e82-4979-a592-1d39a0933d14 Germany | |
| 91b0e7f8-4741-45d8-9d65-db51f5327558 Croatia | |
| 8d3308db-cde8-4ab9-aab9-67e8e3865e71 Belgium | |
| 6f7d305e-13a2-4f48-ac46-8b80c5c130c2 Germany | |
| a3f215f3-818d-4845-bc9e-72c2d44208fc Greece | |
| 0b46579d-0b41-4a07-88d3-17d0718a07b4 Sweden | |
| f865259a-144f-42ee-bb65-82096adb34ba Estonia | |
| f762cf63-baee-4767-ae98-948d926df202 Germany | |
| 10d5e7df-e74d-4b8e-885f-569167eb0298 Hungary | |
| 1767f111-6a9d-4d13-b82a-ab5eed3d3d6c France | |
| ec1e0abf-cd16-4876-a6c9-aed91ac3f536 France | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572167 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644572167 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 130 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
