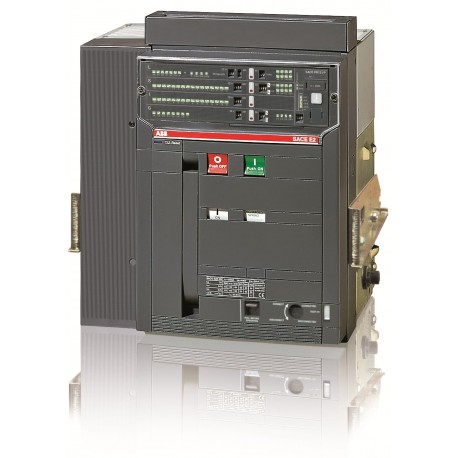

1SDA055882R1 ABB E2N 1250 PR121/P-LSIG In 1250A 4p W MP
1SDA055882R1
055882
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB E2N 1250 PR121/P-LSIG In 1250A 4p W MP air circuit breaker provides advanced overload, short-circuit, and earth-fault protection for high-capacity electrical distribution systems. Industrial facilities rely on these robust switching devices to isolate power grids and protect downstream infrastructure from damaging fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 9075d495-a6b5-465e-ab04-38824b79fabd Italy
- Simplified SCIP: b00346ff-f11f-4de5-a171-aaec1be4f324 Sweden
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572228
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 414 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 61 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 9075d495-a6b5-465e-ab04-38824b79fabd Italy |
| Simplified SCIP | b00346ff-f11f-4de5-a171-aaec1be4f324 Sweden |
| 43f632e7-6021-4f95-86e5-aad9f33c9fa4 Bulgaria | |
| 4023dfc8-873d-4fd7-936c-fb3f43afae76 Croatia | |
| 6a980185-a71e-4110-9058-76cee23edade Germany | |
| 2355d19f-d5a3-4760-a04e-83cb036c9ac6 Netherlands | |
| 1d8325a2-3c2c-4c66-8c8a-f01cfe9b3a15 Hungary | |
| 6ba50c27-f3f5-4eed-b6f1-b20d24b8036d Czech Republic | |
| a4bc4337-d1d9-4448-9070-05afde2a5de0 Poland | |
| 9e57ad0c-26bd-4077-83b4-7066a32a88d3 Belgium | |
| 88095a19-8b6c-4cac-905e-4ad495e40461 Germany | |
| 0361cf34-52b5-45d8-bf8a-b474989df38a Sweden | |
| cbf27503-bd80-4f73-80f7-616cd87a1543 Germany | |
| 868611b3-56b5-4b32-904d-9baeb483b332 Hungary | |
| 98501c9f-c9d6-465a-a3bb-caba03d2212a France | |
| 2b057586-1100-4869-a93a-6fec6970ada4 Spain | |
| 585bfa34-a8c4-4e22-bc01-1991d26c70ec Poland | |
| 946221e2-cbf9-4908-a1f5-7fc6a93b9ab5 Germany | |
| 835d21de-7ef0-4d24-b539-d08dfd5e5255 Norway | |
| 71e6d290-0e5f-4d24-84ed-dc51f7aa83b8 Finland | |
| 780fc61a-da64-4ae0-a30f-392f24f7f3db Belgium | |
| a62c8bbe-408e-4d9c-9811-90620438b160 Germany | |
| dd39511c-0471-4eec-b278-98848a84abd7 Denmark | |
| e66434f8-7b25-45c8-a9db-7c72fb5ffdf7 Estonia | |
| a8e40031-259e-4636-9b36-77fd333b3b78 Greece | |
| c7e52233-0f54-4540-a311-1536d5f0d17a Portugal | |
| ce383c76-1780-4c34-9bca-997556827e01 Poland | |
| 174f6337-c1f6-48d6-ba8c-e3b8ada74acd France | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572228 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 414 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 61 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 73 kg |
| Package Level 1 EAN | 8015644572228 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 130 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
