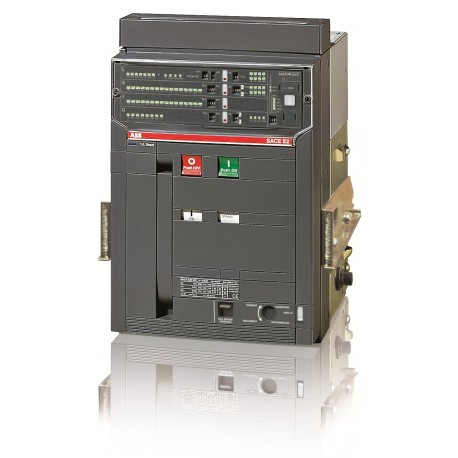

1SDA055874R1 ABB E2N 1250 PR121/P-LSIG In 1250A 3p W MP
1SDA055874R1
055874
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed as an ABB 1SDA055874R1 withdrawable circuit breaker, this device ensures dependable fault interruption and current regulation in complex electrical environments. Large-scale power distribution systems use withdrawable breakers to facilitate safe maintenance routines and rapid component swaps during scheduled outages. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 64ea8ac9-e3dc-460f-aafe-bb939438c718 Italy
- Simplified SCIP: decd7f86-2037-48b5-ad8a-4630243da54e Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572143
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 64ea8ac9-e3dc-460f-aafe-bb939438c718 Italy |
| Simplified SCIP | decd7f86-2037-48b5-ad8a-4630243da54e Germany |
| 7d4550cf-c15a-405e-84f9-b8e45237ab4b Bulgaria | |
| c8b64384-022a-46b6-903b-319d868a9222 Poland | |
| e4be99f9-d333-4b87-9671-c032942e2e98 Belgium | |
| aa1401b0-7bfd-4508-8fdb-8ee480f4b03a Norway | |
| e692ebbe-8247-4027-bd66-536dd1d07401 Denmark | |
| 51ffb504-f1ce-4496-a243-74ee3847cdd2 Germany | |
| 6ffa9647-326e-4cf9-92ab-4edd2691d083 Finland | |
| 2dc52473-93b1-4e94-854c-1ab2aedef95e Poland | |
| 8ddf6783-bdcf-4c4e-af18-8493ab55fd99 Germany | |
| 855e1cc9-520c-47db-9e66-0c8443417fbd Netherlands | |
| d75ed6c5-79a9-41e0-b504-f479663e3b61 Czech Republic | |
| d59164f0-7272-4956-8846-f0a9bcd7edaa Poland | |
| 404b8cef-a358-4751-8a46-7df5fa6c1a72 Hungary | |
| 7e671a76-4ec6-449a-a30b-41ee0c22f4d5 Croatia | |
| ed926aca-55ae-4972-80d5-de4ffd3218fc Portugal | |
| 578d8867-0840-4980-8224-aa3bf5e1c376 Germany | |
| bde08301-d445-41d5-94f6-e5b7f0c724bf Sweden | |
| 473579b4-6802-4d44-b6a4-e31a9e83272c Estonia | |
| fb22d380-e67f-4b06-9960-1f270d050c61 Belgium | |
| 0c0a8f0c-0ca4-4aee-8fee-20c5aaf50f84 Greece | |
| ce136043-2b08-47ab-9fa3-a4e01e4b3398 Spain | |
| 5a3c98d1-d017-488e-85e4-cd02e55c9bcb Hungary | |
| 88b0032a-4e59-4fa0-983b-1160a19dfa7b France | |
| 607e44ad-38a5-4777-8172-4f02e4696ac0 Sweden | |
| b94b4df9-8b62-4440-8fe5-9461cd1c86b4 Germany | |
| 21c6d06a-a80b-4113-a2e3-464d207963de France | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572143 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644572143 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 130 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
