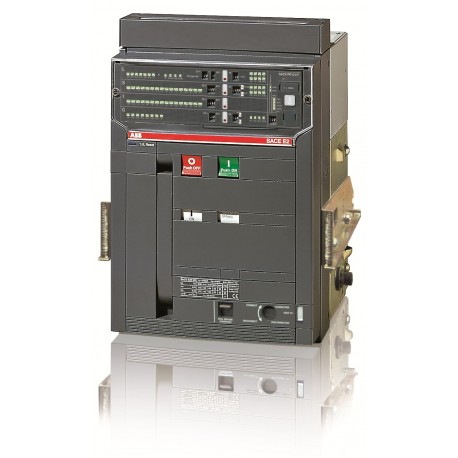

1SDA055873R1 ABB E2N 1250 PR121/P-LSI In 1250A 3p W MP
1SDA055873R1
055873
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Deployed in primary switchgear arrangements, this withdrawable air circuit breaker—the Abb 1SDA055873R1 ABB E2N 1250 PR121/P-LSI In 1250A 3p W MP—protects heavy industrial power systems against overloads and electrical faults. Its withdrawable mechanism allows technicians to rack the breaker out safely during maintenance cycles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 21ca5d31-29a4-45d3-aa89-0a7074bbefcd Italy
- Simplified SCIP: 14e06529-7b06-4880-8a33-3fe2f5953dc8 Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644572136
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 324 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 49 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 21ca5d31-29a4-45d3-aa89-0a7074bbefcd Italy |
| Simplified SCIP | 14e06529-7b06-4880-8a33-3fe2f5953dc8 Poland |
| a3a3c327-00e8-4aaa-bfd9-14ff1c06e125 Germany | |
| 4ebc556d-e367-412c-9191-5bede6e73d86 France | |
| c1d0d91d-1ffe-4fd4-8d10-b62bac7df46c Sweden | |
| 8603fac9-b32a-4c52-82ca-983973638dfc Germany | |
| 268d1ccf-8c11-4ade-9d94-6043d2d55b76 France | |
| 312d51ac-ddf9-4fe0-980e-293f3e2bcee7 Spain | |
| 7c2883b1-19a2-49c7-bbe1-4e4580425ef3 Bulgaria | |
| 77594e13-3201-460a-b10d-9925b785b0bc Sweden | |
| e0aa3407-89d8-44cb-838b-7ea9ed4bb43d Belgium | |
| 10facbb3-017d-4fb4-8c2a-80c942a7c167 Hungary | |
| 79f4e6d9-7fc3-4abc-a24d-51d8d3ff50d4 Estonia | |
| b6c2768f-0200-4397-bf35-9e104495ecf3 Germany | |
| 9413236c-9682-4c2c-968e-ba46e0fba13b Greece | |
| af5ec818-df4e-48bd-84f2-273fbcd8d9f7 Czech Republic | |
| 8b4a79f1-6bec-4c7c-b198-cf470f241a9c Germany | |
| ffa376cd-e5b8-41d4-a508-f03606686273 Norway | |
| 0809b2ec-a674-40a0-a815-4ea49bdca20a Denmark | |
| 298cda0c-fc8e-4d09-8d3f-de0917cb1d58 Germany | |
| 783e9098-4f8e-4ffb-82b9-d9d035829a1e Poland | |
| 24a043cc-aa3a-4cc2-96d6-7ca6c80e8981 Finland | |
| 23c7c15f-461b-43f9-9498-6b70f7c64584 Netherlands | |
| 81bcba3c-b8be-43ee-963b-c7fd64416bce Poland | |
| a0a92a9b-b76e-4d04-825c-e29dc4638361 Belgium | |
| 3d9d36f7-d20c-41dd-830c-42a048a4ba0f Croatia | |
| ce20cfcc-14c8-463a-9851-538cd18ce181 Hungary | |
| 9d8ccfb4-d602-494e-9041-a8b63f44b138 Portugal | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644572136 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644572136 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 130 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
