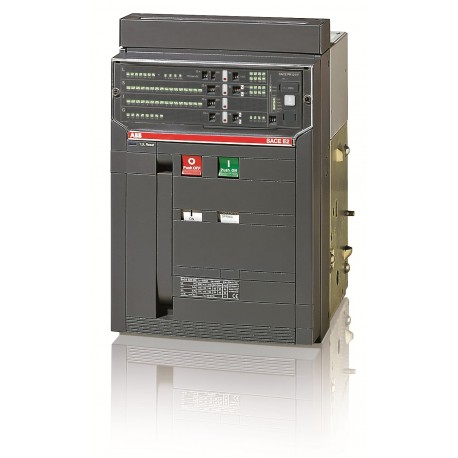

1SDA055857R1 ABB E2N 1250 PR121/P-LSI In 1250A 3p F HR
1SDA055857R1
055857
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker such as the 1SDA055857R1 ABB E2N 1250 PR121/P-LSI In 1250A 3p F HR provides essential fault protection and load isolation for large-scale electrical networks. Engineers install these protective switching devices in industrial switchgear panels to interrupt excessive current levels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 5a4d535d-e946-46b7-8de7-712c8510c39f Italy
- Simplified SCIP: 82ce4883-5ac0-4054-ba98-510b97c48fa9 Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571979
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5a4d535d-e946-46b7-8de7-712c8510c39f Italy |
| Simplified SCIP | 82ce4883-5ac0-4054-ba98-510b97c48fa9 Bulgaria |
| 597cba61-e686-4be6-b401-e3c0b5f527c2 Poland | |
| a20a3f10-f499-4d57-a9c7-8419eb791061 Netherlands | |
| 396e81fa-142a-425a-8a09-51d89c29fcf6 Belgium | |
| 95df88ba-d05a-4b0e-94be-3dc23e0c4a96 Hungary | |
| 9bb60d56-8836-473c-b57d-91b3050f1add Poland | |
| 2a53fff8-ee34-4ff1-9786-f7733426b69f Czech Republic | |
| ac0dcc63-3867-4731-b547-ae7ea52c8df4 Portugal | |
| 73806252-b06c-406c-8699-019fc59b01d1 Germany | |
| 3d4cd24a-f2cc-46fe-afaa-27ed6ca3ff81 Finland | |
| 5c76e5b4-dfeb-4d69-9aa7-0c6ccf3bc908 Poland | |
| 09e61822-70f9-42a6-b8ab-341c2b3d39bd Norway | |
| 750df40a-22ac-4196-ad70-71ac49c279e4 Denmark | |
| 0d135354-814d-4c9e-bec7-fafeef1581e9 Germany | |
| ccabb47c-189a-49b4-9cc3-d303f1d14d5d Croatia | |
| 21973034-a4c8-4690-a6c3-4b4565faf9f6 Germany | |
| 283e538e-9bc0-4bcb-993a-cfaefe28e2af Estonia | |
| 26cd21bc-5755-4796-bdde-f2491a504bc0 Sweden | |
| 213be584-15de-48b1-99b2-81b30ab95157 Spain | |
| c3bd3e01-e114-46ed-9b5c-e375b9c87285 Hungary | |
| 8ae4b494-9b72-4e64-8cad-948e4cf846ab France | |
| 2cdac0b3-e375-4a08-a794-5cc29290143b Germany | |
| 3c5f93be-d6b9-497e-aaf2-613e2fa8521d Greece | |
| 147a8530-e7a3-44f8-92b1-b6f9975ce094 Germany | |
| 973d7fe5-647b-4f26-996f-5e49908f020a Belgium | |
| f8756271-bef0-48e2-898d-691d508a6dce Sweden | |
| b2595e04-fcdb-4256-a701-41125be95335 France | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571979 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571979 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 70 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
