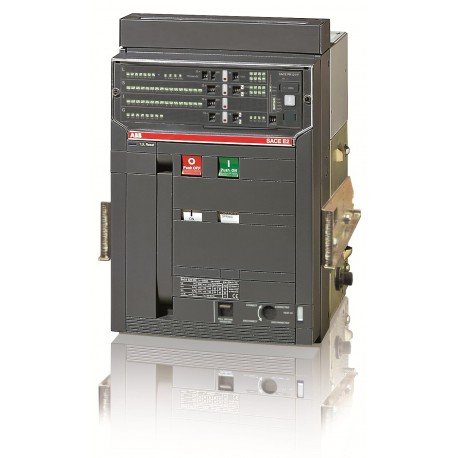

ABB 1SDA055872R1 1SDA055872R1 ABB E2N 1250 PR121/P-LI In 1250A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055872R1 ABB E2N 1250 PR121/P-LI In 1250A 3p W MP

1SDA055872R1

055872

ABB

1 Pcs.

E2N 1250 PR121/P-LI In=1250A 3p W MP E2N1250 PR121/P LI 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPe89105c7-7ace-4bfb-8ec4-97ad9dd60ad4 Italy
Simplified SCIP7c7d44ed-44a6-4cec-871f-9df188aea78b Sweden
9e2e149c-f1df-4364-a4d5-cd7f06a0531a Poland
d9d2aa6d-3fda-4e62-9647-500da1287de9 Spain
37ffdbbe-e78d-4ff7-a581-80cca28051e0 Belgium
f6fe94a0-6673-483f-8945-c133888a6c6f Germany
0b5ad280-a98c-4fa8-b9bb-6bb7fcedf1f5 France
834e349c-6024-4f1c-877a-d8f6dd894534 Poland
0b83f26a-8111-44c9-988a-bc3f0cfaa9b7 Norway
70e4fec3-486e-4c06-a380-14b5a73edc96 Poland
8586c3f8-daf6-4d0c-a426-c51ca08dc5bd Netherlands
99dcb2b7-ccc3-46b1-b324-6fefb32a7673 Germany
e7718b5f-6956-4fd9-941e-7261f4c19b7d Czech Republic
5f49a199-0b00-4c65-a299-f1ff085bd99e Bulgaria
25412259-fa9a-423d-8585-9e51902f06af Portugal
ee8e93f0-d92e-4e3e-b492-8dd210789fe6 Greece
821d7213-1fc2-42fc-8a4e-3d1f3b235117 Croatia
79febcea-8a75-4a69-b9ed-9caa66285e22 Finland
485a1c32-5ea8-4663-ac6c-283230393358 Belgium
5794dd0e-7e0b-4afd-b4bb-8dd08af16ee0 Germany
ff2a690c-e94a-49f6-9e4a-4aa0d8abb2d7 Germany
47315867-7ee2-43a1-b9ac-87f85013a9db Denmark
8be4eb82-0d60-44da-894f-0e9c4cd87256 Germany
ce1c9602-f5b8-49ab-b969-8a95f7651698 Sweden
98726471-fd9b-439c-a60a-5ed2cc9b4e4a Hungary
97ba3d03-aa26-4213-8196-f789d3226b4e France
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644572129
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644572129
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss130 W
Rated Current (In)1250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1250 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Uninterrupted Current (Iu)1250 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LI
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
