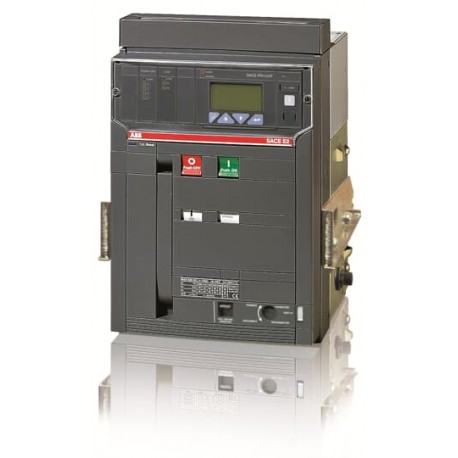

ABB 1SDA059274R1 1SDA059274R1 ABB E2N 1000 PR122/P-LSI In 1000A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA059274R1 ABB E2N 1000 PR122/P-LSI In 1000A 3p W MP

1SDA059274R1

059274

ABB

1 Pcs.

E2N 1000 PR122/P-LSI In=1000A 3p W MP E2N1000 PR122/P LSI 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP565b9f4f-bb5c-4ee6-a97a-b6cdab972d46 Italy
Simplified SCIP870f5cfd-9cc0-4fcb-b178-853a10cfcef3 Bulgaria
95ce512b-3043-46e0-b3b0-b776cfddddf8 Poland
a774130b-6696-4c75-b1d2-318978e8fc3b Hungary
c6d53111-f631-4a81-864e-2905f35f515e Netherlands
8ca3323a-b1ad-4a6a-8db2-81b150986ad9 Poland
90b61efa-83fe-4d18-a9e2-944ed0367570 Czech Republic
7ff71f31-b834-4dab-80d9-c8a99a2335a2 Belgium
1802f3d2-5de3-4f5b-8082-c1908920e7bc Denmark
d541321a-1595-41c5-9e3b-d3fc15c996f6 Germany
106555bd-061d-40fa-b79b-bb4d49fdb887 Croatia
7306af6f-11f8-4fa4-947c-e9281ddc6b6b Germany
ec5f0994-9bd0-4598-b155-fd57e108abb3 Portugal
80b7ed88-89ab-4e6e-bf92-59af46a7dea8 Poland
d8d7bf17-22b3-42dd-96d8-e5eabb3c9df7 Norway
90c8e580-5a13-49b6-9b3f-99ef08602737 Finland
ac0913f5-e076-4f45-8be7-79959afc4e33 Germany
b49a3227-4403-46dd-9852-f755d29fcdb1 France
22e06b67-1188-4448-b0fc-b178257e57a2 Spain
b8ea310c-87f1-4d2f-8dcd-9c0be571ee0d Estonia
80f49462-fa4c-4f49-a95a-765ac9c53c65 Sweden
1c97f9ba-cd0f-45e8-afba-0074fe72e6cc Greece
9e0c8124-d55e-497d-916e-9caf0427596c Germany
bef0037a-bcb5-48be-8586-9bf637d3bbe7 Belgium
6064d719-6b8f-4901-8d83-daf172be17d4 Hungary
2cbfb882-3635-4a6e-898c-9086e157c4d7 Sweden
930bc5fe-a816-48fe-8678-ada026e18a10 France
0582b04d-0c4d-4955-931f-809fce1b0cd9 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644616359
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644609139
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 15000 cycle
Ue = 500 ... 690 V 15000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss83.2 W
Rated Current (In)1000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 55 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(380 V AC) 65 kA
(400 V AC) 65 kA
(415 V AC) 65 kA
(440 V AC) 65 kA
(500 V AC) 55 kA
(660 V AC) 55 kA
(690 V AC) 55 kA
Rated Uninterrupted Current (Iu)1000 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSI
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
