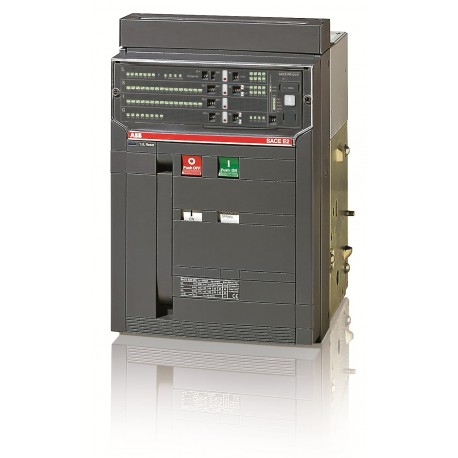

1SDA059257R1 ABB E2N 1000 PR121/P-LI In 1000A 3p F HR
1SDA059257R1
059257
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb manufactured the 1SDA059257R1 ABB E2N 1000 PR121/P-LI In 1000A 3p F HR to provide reliable protection and switching functions in primary power distribution networks. These robust air circuit breakers safely interrupt high fault currents to protect industrial installations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 12608ca4-cc00-4e7b-8900-a79ad6ed9f31 Italy
- Simplified SCIP: ea30ec85-a773-4c76-96f6-8798df76f7a5 Bulgaria
- Environmental Information: 9AKK10103A6076
- EAN: 8015644616182
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 12608ca4-cc00-4e7b-8900-a79ad6ed9f31 Italy |
| Simplified SCIP | ea30ec85-a773-4c76-96f6-8798df76f7a5 Bulgaria |
| 6d37f989-bbb6-4325-bfdf-ad1d9e772ae9 Poland | |
| 6e465969-d946-48a5-9bd8-fd7ea632a622 Germany | |
| 2764a704-504d-46a2-819f-e2cf18208b26 Estonia | |
| 20d739f1-be15-4e73-bc0a-5b2ff4587ce7 Sweden | |
| 91cbaf49-78c4-4380-a516-ece80517e57f France | |
| db486a55-caa8-46c5-8725-e8cdec04a6b5 Sweden | |
| 4be85879-34fc-49a5-b3f1-1a5d0635f7a9 Belgium | |
| be2b6d37-bca7-4694-89b5-1892f1843074 Hungary | |
| 64b84a50-a147-4006-b5ff-649a05f3d82f Greece | |
| dad7b406-c7a5-4a49-b7c8-2d24875120df Germany | |
| 4caf94b8-adca-466e-8bc4-aae5d4be7337 Germany | |
| 439ab400-8d4e-4be8-ad2c-c9e4fd849b74 Spain | |
| 4f8216d4-0dc5-4227-89d8-799d6310a5f5 France | |
| f71abbb0-87fd-4014-8a69-8bbe361e3131 Hungary | |
| 4a10f8bd-b7fc-4053-a552-8dbd9e0e4dcf Portugal | |
| fa2dbabf-de96-4fa7-b1ab-4c4c0c37a234 Belgium | |
| ec0fbbe6-d910-4787-a9ba-58703bc4f7f2 Czech Republic | |
| 8ba30a9b-9d5e-4cd2-bfe4-25efad107466 Germany | |
| 69e83932-e43a-4c0c-9d7a-a5041a17ded6 Germany | |
| e6da425d-ba49-4063-a54c-5f3fe68e1505 Croatia | |
| 14cbac5f-97a1-4b4d-9dcf-bc5e17f7a0c6 Netherlands | |
| d6687ede-3444-4dc6-9d35-85bbacf23fbb Poland | |
| 3a89907c-31dc-47bf-a509-5fb04c3f9db5 Finland | |
| 86c229cc-afcb-4458-9815-01684668e91a Denmark | |
| b8fa3d6a-433c-4f52-8aa7-1da5959e46f4 Norway | |
| 2f5dafe2-1cb8-41b2-acc9-5e9bf087c425 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644616182 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644609139 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 15000 cycle |
| Ue = 500 ... 690 V 15000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 44.8 W |
| Rated Current (In) | 1000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (380 V AC) 65 kA | |
| (400 V AC) 65 kA | |
| (415 V AC) 65 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 55 kA | |
| (660 V AC) 55 kA | |
| (690 V AC) 55 kA | |
| Rated Uninterrupted Current (Iu) | 1000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
