View larger
Images are for illustrative purposes only. Please refer to data sheet for details

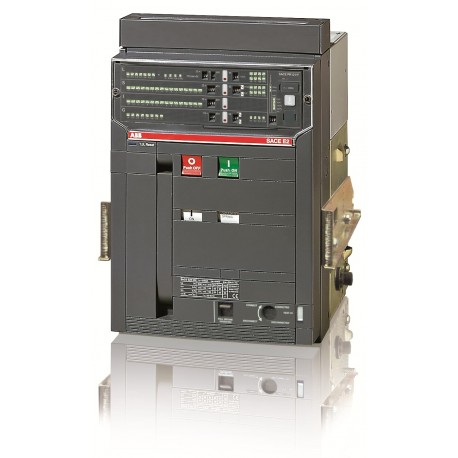

1SDA056098R1 ABB E2L 1600 PR121/P-LSIG In 1600A 3p W MP
1SDA056098R1
056098
ABB
1 Pcs.
E2L 1600 PR121/P-LSIG In=1600A 3p W MP
E2L1600 PR121/P LSIG 3P W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 4783dc79-601c-4c09-b977-8f925a438db6 Italy |
| Simplified SCIP | 92f721bc-f96a-4cad-9958-d175cd27f95f Estonia |
| 26328ad8-a56e-4029-84be-20f25fd13551 Germany | |
| eda0a5d2-7c9e-42c9-ba07-beb31be31db3 Hungary | |
| b8092535-712b-46cf-9606-0b06c2de2d5c Greece | |
| 5d764602-1f0c-4a33-83f4-1e03a7d90589 Germany | |
| 1dac976f-cdbd-411f-b5f4-20c203346c10 Sweden | |
| ef7547e3-d830-4fbc-b678-b724e761d8e5 Bulgaria | |
| 6ffb60c8-8056-4716-b3bf-3b4b31954e07 Poland | |
| 2a9026b7-5b12-4e04-b55a-27d8c73a96fa Portugal | |
| 185c3f43-8f63-425f-8fa0-915c5c92ad71 Hungary | |
| a250582e-165f-405c-8d0a-a384970f4ac9 Poland | |
| f7c5cb3c-ead9-44bb-bf6f-78b40af1b7fb Netherlands | |
| 1280410f-04b5-4fa2-8eee-b09eebfe4487 Belgium | |
| 52bec6be-d3e1-48a2-8549-81c7b6ab5dd4 Czech Republic | |
| 67769418-4729-444a-bf3a-8b3493b8f6fa Denmark | |
| 89120676-b739-4a1a-9367-c65047088461 Germany | |
| c0844de2-81d6-4d60-b861-fc063b41438b Germany | |
| 5350ec96-4751-479c-ae06-5bcde0c36e78 Croatia | |
| da6b55ac-cc79-4479-8e35-058e7f223c9b Poland | |
| b5967356-373c-4497-b476-ebbad51f7058 Finland | |
| b441748c-4beb-482e-8108-baee648808d9 Norway | |
| 5fe0174a-4fa1-41fa-b107-744b460b6c89 Sweden | |
| c67c8b3e-754e-4e63-bc11-69c49c64a92b France | |
| ebd91f8e-d77d-4524-b551-21d76c070402 France | |
| a71b9122-d41c-4d7c-940a-ced58a116083 Spain | |
| e42bc926-e87a-483b-b73f-3cc1a6c9570f Germany | |
| 3313a6a8-93d8-4b82-992f-aaa0bc2ceb39 Belgium | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644574383 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644574383 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 265 W |
| Rated Current (In) | 1600 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1600 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 1600 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
