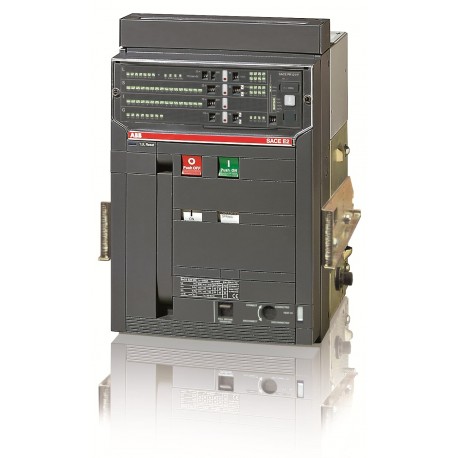

1SDA056065R1 ABB E2L 1250 PR121/P-LSI In 1250A 3p W MP
1SDA056065R1
056065
ABB
1 Pcs.
E2L 1250 PR121/P-LSI In=1250A 3p W MP
E2L1250 PR121/P LSI 3P W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 5eb97450-7b2f-4930-92d9-cb6d74de1c84 Italy |
| Simplified SCIP | 56c3ce3b-8a00-4160-965e-83298c4f8683 Sweden |
| 146ace86-b3c3-4cb0-a76e-42df4b48f1fd Estonia | |
| ab58c2eb-875f-4e22-b2a5-dd354dd5ce4c Germany | |
| f9f6b330-26a0-42a8-97b6-0746846db929 Greece | |
| a5450c74-87aa-49c7-81e3-98d448f237c7 Poland | |
| 5300273b-bb89-4b02-a6dc-ced2f12c11ed Belgium | |
| 14ac913e-bbd7-43b2-a3f5-fe1d4b014e0b Netherlands | |
| d7d01b49-1f7c-4020-8f8b-844c44dc2418 Portugal | |
| c51b007d-b157-4df8-a254-a80cf482d415 Poland | |
| 08be6e6a-e0da-48fb-83d3-f4003d541303 Hungary | |
| 0fae3cf2-679a-4bd6-b2ed-76658e80f29a Croatia | |
| 7868c7d3-472f-4a6e-8515-b2a4f4df9550 Czech Republic | |
| fb113f1e-2c27-4de4-9142-d7f592c15326 Poland | |
| bd4fc3ff-e605-4aa8-a484-959f1076347a Finland | |
| afcd01f0-3eb3-46cd-8821-a0a2ed2276f2 Germany | |
| cc9f61f9-ca9a-4c5d-8df4-4c8dd51577ad Denmark | |
| 99403e2d-d56c-4c23-ac67-3d9ed97f3e1d Norway | |
| 682f3de3-d5e1-4924-8c4b-2965bb5b6e6b Germany | |
| c805ead2-6544-4d08-ac4e-8591c4a3e5f4 Germany | |
| a25cdc87-0c26-4c1f-a3e2-ac32fd50c353 France | |
| 7172ff6b-b5a7-4093-b4c0-eb5b4b6bd01e Sweden | |
| aa9fcee8-cf96-4cab-8550-9e63c562d7b9 Germany | |
| da77e6e0-e743-48f5-92cd-d2d4449ba5a6 France | |
| a88dc19f-4983-4ba1-8bf6-34553ab3e5de Hungary | |
| 856526b2-4905-4541-b79d-f93a261e2a60 Bulgaria | |
| 689a55b1-83ef-488a-bbbd-ded4c25b2fac Belgium | |
| 5be5f963-a6c3-4e4d-9d80-185d5452ea53 Spain | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644574055 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 324 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 49 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 59 kg |
| Package Level 1 EAN | 8015644574055 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 4000 cycle |
| Ue = 500 ... 690 V 3000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 165 W |
| Rated Current (In) | 1250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 1250 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 65 kA | |
| (660 V AC) 65 kA | |
| (690 V AC) 65 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 130 kA |
| (230 V AC) 130 kA | |
| (380 V AC) 130 kA | |
| (400 V AC) 130 kA | |
| (415 V AC) 130 kA | |
| (440 V AC) 110 kA | |
| (500 V AC) 85 kA | |
| (660 V AC) 85 kA | |
| (690 V AC) 85 kA | |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
