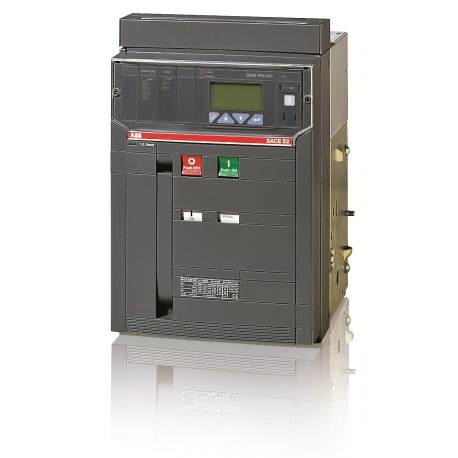

ABB 1SDA055828R1 1SDA055828R1 ABB E2B 2000 PR122/P-LSI In 2000A 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055828R1 ABB E2B 2000 PR122/P-LSI In 2000A 3p F HR

1SDA055828R1

055828

ABB

1 Pcs.

E2B 2000 PR122/P-LSI In=2000A 3p F HR E2B2000 PR122/P LSI 3P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP13b6ad64-3721-400b-bea5-2553e6687ec1 Italy
Simplified SCIP03f65d15-3818-44b3-8d28-8bdf6faa59b6 Poland
6d674396-85ef-49b3-81f6-c5a02de654a8 Bulgaria
6f5e079b-465b-45d0-9e9e-964cb9dc0cfb Germany
53b6cf78-351f-41f3-97f5-f6f1bafc3044 Netherlands
bb5dbf90-7fbb-4011-8522-7111d6111aac France
0e49041a-b119-4754-8558-c421d7df53d9 Spain
a2e5f990-4cef-4bb9-8f62-8cc4fb0f5655 Sweden
c88ec05a-0c0c-4413-81d3-899d901f496e Germany
aa70e9ba-517d-4d4e-a4c2-0ae928f3fc33 Hungary
88d5ec3b-6227-402c-a924-1e00ab422281 France
9ed005a3-13fd-4fc4-8364-f498f477ab90 Greece
2000fd31-564d-4b09-8cb4-c2ed668404da Belgium
f4e1bd91-e1ec-4595-89b0-0938c9fe37bd Sweden
16360a21-2695-4f6e-9f7c-7703f655556a Estonia
c23e7a59-18ec-4b37-b839-9337ae0a33c2 Germany
f15aa3a1-08f3-43e6-9d28-fadccdcf9a58 Croatia
c5797251-6985-4c13-9ee3-69bff4c5cf59 Hungary
5ab7eee8-6f88-423b-8d6d-3d3e759632bf Poland
212f0927-ba81-4fd9-9c42-c7ae99b08248 Czech Republic
bc0414c2-fb5a-41b8-b37b-060a43ef0bbd Germany
39c10669-0237-4e7c-b275-3d2adc49c503 Portugal
802accf3-243a-4efa-9c7c-b1c6d9adf16b Poland
8f71f988-b70f-448f-9654-cb5a0b5b4fd6 Finland
f6b14553-1d6f-472c-bde7-fa4d8a692309 Norway
8438d5ca-bb20-4877-af35-dcbfffc7c075 Germany
0d93f1ad-727f-446f-9c6c-7d2bb12f5c8f Denmark
eec876c4-a702-45a0-bf21-9e370c32d2e1 Belgium
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571689
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width296 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight45 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight55 kg
Package Level 1 EAN8015644571689
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss180 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
