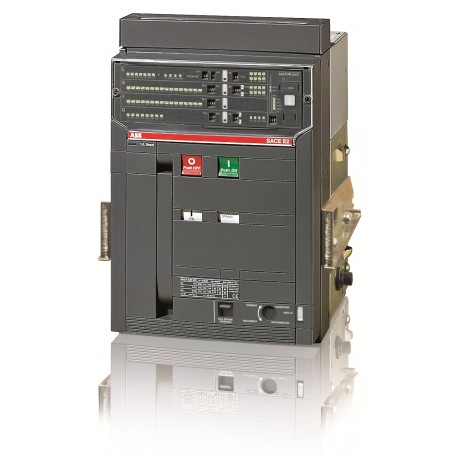

ABB 1SDA055842R1 1SDA055842R1 ABB E2B 2000 PR121/P-LSIG In 2000A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055842R1 ABB E2B 2000 PR121/P-LSIG In 2000A 3p W MP

1SDA055842R1

055842

ABB

1 Pcs.

E2B 2000 PR121/P-LSIG In=2000A 3p W MP E2B2000 PR121/P LSIG 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPb9b16158-bcb8-42ed-998d-e79c0f8344da Italy
Simplified SCIPbce1cc33-d576-4851-8109-b7af57e1c0a1 Belgium
c0b9f210-571e-4e69-9971-5cdb9538c495 Greece
0dd3a892-c026-4848-8b88-9d6935ec4f2b Bulgaria
88f979dd-196b-48ee-a574-6368e92c626c Poland
718ef645-b753-4077-b9c9-f686ba1a050e Norway
1c432318-c327-4820-8de7-daa865191f99 Germany
e4ad9b6c-ced5-43a4-b604-346c98d45a89 Denmark
c5ba456c-bec7-4afc-a782-6dca2aa3a442 Finland
5f97bb9f-aee0-4f1f-b4a3-480df273154a Belgium
c0db7e17-8b7e-4b85-9186-f2993d06a4c6 Poland
de3e976a-6ee1-4d09-b5fe-5e22550f53e1 Poland
85f5e7f0-af31-46c1-93be-5f8732d5240b Czech Republic
0d2d95e9-6a1d-476b-90cd-c0104dd330df Portugal
8a721ddd-209d-4118-be4a-340a8fa55385 Germany
d4d19850-bcf1-4cef-a6e5-91386678fa7e Croatia
193b6642-6875-4f3f-9e61-02d821a95f30 Hungary
530a2375-a58c-4e35-a638-10b5ce5c2bbd Netherlands
2e9844d7-f1cc-4699-b461-f45596e4cfa3 Germany
1035a837-bbf0-4267-afa7-9405d1337897 Estonia
d20168a9-3059-4b23-8096-8f88361e8b24 Sweden
9d7ea2d7-830c-4c31-91e5-d6c307c3ebbc Germany
9d13e461-7b82-40b0-af10-f6b990545623 Sweden
14c6597c-06af-468a-a656-628110f5ecf1 Germany
edb1daf1-7486-4fec-afb6-9ad144b34622 France
fff2445b-e84c-4a54-9721-ef017ee4328e Hungary
66b2ee45-4a2d-4e40-bcaf-e3b1c0423fb6 Spain
934ca347-00d2-4df9-90a2-e3d60e2f51df France
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571825
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644571825
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss330 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
