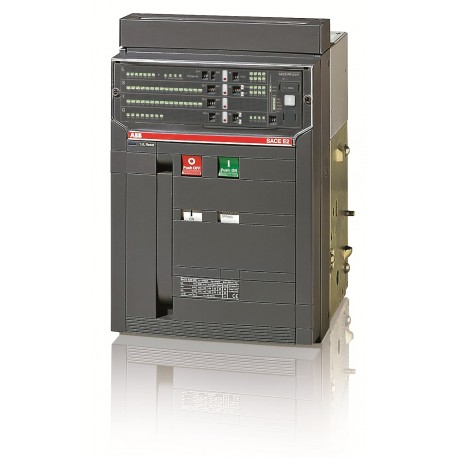

1SDA055826R1 ABB E2B 2000 PR121/P-LSIG In 2000A 3p F HR
1SDA055826R1
055826
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker, specifically the Abb 1SDA055826R1 ABB E2B 2000 PR121/P-LSIG In 2000A 3p F HR, is deployed in primary electrical distribution switchboards to protect high-capacity circuits and heavy industrial infrastructure against overloads and short circuits. These robust switching devices interrupt heavy fault currents safely, thereby preventing catastrophic equipment failure and minimizing facility downtime.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: b7727ea7-9cbd-4701-970b-46a633690edd Italy
- Simplified SCIP: 4d58aac3-c72e-4a26-b16b-b83481b97c3a Poland
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571665
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | b7727ea7-9cbd-4701-970b-46a633690edd Italy |
| Simplified SCIP | 4d58aac3-c72e-4a26-b16b-b83481b97c3a Poland |
| e2e65a6c-9a29-4118-8cb8-fa60df2c08d5 Belgium | |
| 96be4de9-4379-4953-bb76-15ea2be7360e France | |
| a5713139-6d99-402e-bda5-6ae550947292 Sweden | |
| b1fbf218-51dd-4768-9608-ff86b32f496b Germany | |
| bc19c316-cf5d-4f57-8c58-92fb5108921a Sweden | |
| 25f5d032-84d0-4bff-9e02-2a30cf5ae0fb Estonia | |
| 9c028653-8a33-4ec4-a9d9-599fe36968e8 Belgium | |
| c14be696-2ef4-44b1-b2c6-d6a30098cdcf Greece | |
| bd0d53dd-f5bd-471f-bc57-18738d9403b5 Germany | |
| 1c410924-aabb-4a8d-ad35-2100f6085d3a Hungary | |
| 11584053-4756-4daf-ae5d-50a6292e4f8c France | |
| 7ed90e83-3d28-4683-ba88-cd27b0feb5b7 Spain | |
| f2809926-85b2-4cbe-aafa-33fb3228f75b Bulgaria | |
| b91fbf06-52bf-49d2-8315-643cec6b446b Netherlands | |
| c58054fa-cef3-4503-85c5-b5fef356821d Germany | |
| fdc7a35a-b077-44fc-8332-f4a4a5124b7d Poland | |
| e6af36e5-26b8-4e7d-b962-d8c41df17141 Poland | |
| 16fa91a4-d606-4861-b215-405867238043 Finland | |
| 1b493444-a607-4773-bc4c-6561fa8c90c7 Germany | |
| 793b561d-507d-436c-9031-9f81ddea25fb Norway | |
| ef5dee0e-bb49-4425-aa16-88a0a5d4a96b Germany | |
| a3b681e5-28ac-4ea5-9bdb-e4b10e46f02f Denmark | |
| c033092e-af94-40c7-8ca2-b828621165fc Czech Republic | |
| cf224856-bcf4-4f90-8091-f7a05e50947e Portugal | |
| 96770e0b-0b67-4ec2-ac19-1ea2d3f7b64f Hungary | |
| 2f335e32-349a-47d9-a338-69455e27f302 Croatia | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571665 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571665 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 180 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
