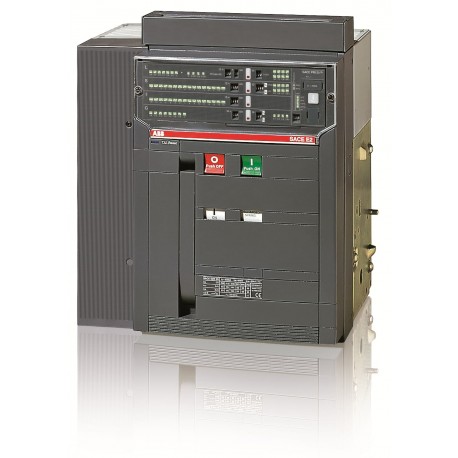

1SDA055833R1 ABB E2B 2000 PR121/P-LSI In 2000A 4p F HR
1SDA055833R1
055833
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker such as the 1SDA055833R1 ABB E2B 2000 PR121/P-LSI In 2000A 4p F HR provides dependable fault protection and switching capabilities within heavy electrical infrastructure. These robust units are installed in switchboards to handle high current loads and maintain system stability.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 21fde293-2eeb-4543-b4a9-2ca3584b9c2e Italy
- Simplified SCIP: 36af1567-599e-49ff-9f43-1992529d7873 France
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571733
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 386 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 56 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 21fde293-2eeb-4543-b4a9-2ca3584b9c2e Italy |
| Simplified SCIP | 36af1567-599e-49ff-9f43-1992529d7873 France |
| 17d64d27-8a2a-4349-9780-96e8fb1f6998 Hungary | |
| 7590b64a-472e-4fdb-b6ad-04bd2c1959f2 France | |
| 59519df1-cbbc-4463-94d4-71d32933d60c Sweden | |
| ad59d492-aed9-44aa-9d2a-c7e29e9357b9 Germany | |
| ba23f02f-3158-4fe6-936a-fe53820674a2 Germany | |
| 8e1040ff-a318-4e56-86ce-388d417501e8 Belgium | |
| faf026d1-1aca-4eda-abfd-27b3b7ef79c2 Spain | |
| aebefc95-b8bc-4d7e-ad81-afcdc5e334d5 Germany | |
| 6adb54c8-9a46-44dc-afaa-46b90c0f5b09 Belgium | |
| f06b1a50-62fd-4b7d-af99-ce930bb9e1c1 Finland | |
| a57f88cd-386b-4ee8-9de6-e36feafb282e Norway | |
| da8d1071-b1f3-4490-b168-19fb05c450a0 Poland | |
| 4d37e966-daae-4726-9a97-9ae81971f9cd Germany | |
| 8c90aaec-c16a-4df7-8994-366a663f0a49 Denmark | |
| bd2aca0d-0cb3-4f1d-979f-69c61ee1d707 Hungary | |
| 2b4d426f-5fdd-41cc-b12d-98b9a6c8a524 Estonia | |
| c3061fb1-b1e0-4e1a-a7da-d081b1b5587e Poland | |
| 4438d84e-0262-4daa-96e5-7a1c5efc3cb8 Sweden | |
| ecb5d4b6-f364-4f7b-b4f0-6c4c86c81541 Bulgaria | |
| 0abe5a98-9517-45af-88d9-965ca69d9c62 Greece | |
| 2db5ba68-3da0-47a8-a678-fa636b0b0be9 Portugal | |
| 6817a288-de70-4492-906b-ea20dc2c1442 Netherlands | |
| 72319166-05d6-4e9d-ab37-f28103471909 Poland | |
| aa856779-ce3d-4a8c-aded-7999574c5b06 Czech Republic | |
| 3cb03d27-03a6-466b-885d-4a903143fc47 Croatia | |
| 02099611-43b3-4618-a0b7-bfd0f5c87487 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571733 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 386 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 68 kg |
| Package Level 1 EAN | 8015644571733 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | 180 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
