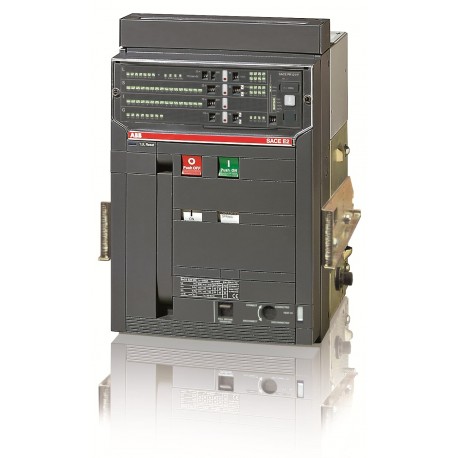

ABB 1SDA055841R1 1SDA055841R1 ABB E2B 2000 PR121/P-LSI In 2000A 3p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055841R1 ABB E2B 2000 PR121/P-LSI In 2000A 3p W MP

1SDA055841R1

055841

ABB

1 Pcs.

E2B 2000 PR121/P-LSI In=2000A 3p W MP E2B2000 PR121/P LSI 3P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPfba7e99e-a4bb-4bd1-88b2-6be25a177aa8 Italy
Simplified SCIP2ad57733-c608-468d-8d2a-cb2e8a2df55d Netherlands
152bb565-e75c-4431-8b76-8a19341aa55a Poland
9a34bc32-732d-49e8-a43d-21cff80b7554 Sweden
4fce0670-1772-48cf-8d95-d92714e3501e Germany
245210a1-0b2e-4397-9ef8-784969406ef5 Belgium
60e3adb9-e5b2-4a56-b3f8-d831e27a9b56 Hungary
e5fc86c0-d908-4101-ad09-51ce28f537b4 France
bd9cb785-426d-46c6-b596-220b4fba3567 Germany
a72880ea-b04e-4259-bcc2-4acccad68c36 Poland
cc66285f-658d-493a-b880-a18d6237db82 Spain
d469b38f-4776-4c4c-9cf2-1d5c7f814434 Poland
de533e1e-afa8-48f1-bd15-e5df30d7cd92 Norway
07281d95-dd9d-481d-997c-3275578a0671 Germany
b43a0bbb-7982-4ecc-9737-9347aa912213 France
377036b3-46dd-4da5-9d9b-8d2767957af9 Sweden
c0adecda-ae97-4745-8814-73022e88f25f Finland
2b79f853-1652-4192-a9af-58114db3d9b5 Germany
01e42270-753d-4387-a22a-e5f91c75d76c Germany
b9b21083-5084-4d06-a461-398b264b1e92 Belgium
bbaf13e2-9f63-4da1-bb6c-cd6035d7578b Portugal
2308f98a-7459-45f9-a769-274e3765ebe3 Denmark
2b5fff94-b57c-4a3d-af6c-c8209072cf72 Czech Republic
507a47a2-ff4d-4207-a551-74d2e4a409c7 Croatia
91746fee-869d-417e-b80e-e974278acc57 Bulgaria
caaac10c-5753-49c2-8438-89c3737e51c4 Greece
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571818
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width324 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight49 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length515 mm
Package Level 1 Gross Weight59 kg
Package Level 1 EAN8015644571818
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles3P
Power Loss330 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
