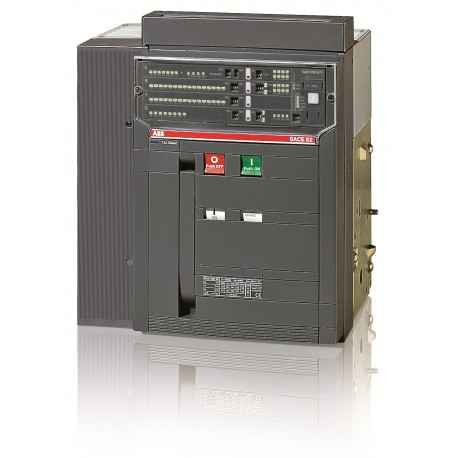

ABB 1SDA055832R1 1SDA055832R1 ABB E2B 2000 PR121/P-LI In 2000A 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055832R1 ABB E2B 2000 PR121/P-LI In 2000A 4p F HR

1SDA055832R1

055832

ABB

1 Pcs.

E2B 2000 PR121/P-LI In=2000A 4p F HR E2B2000 PR121/P LI 4P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP3069f87e-cb2c-4ec4-a901-2d776af75d7e Italy
Simplified SCIP2854540f-2fbb-4736-b6f0-70128c6a604b Belgium
beb539f1-8ffe-4d65-ab14-e19371861eac Spain
02192812-7e23-4bb7-b77e-0ab484b6f93f France
dcee2644-236f-4afb-91e3-c13d6d74ab91 Hungary
9b595719-4e60-4168-a838-4e1b7a19de4f Germany
d331cc8d-acf6-4379-824b-4ac139f4ba6a Germany
30826eed-247b-4431-85f8-9b690f1672c2 Sweden
d15ae0a5-6009-40da-95f2-fc8aea1619c5 Poland
552d1b82-791c-4cc4-84ca-c61b89d98a95 Czech Republic
03a7c6af-0863-4520-bfe4-7f51a3d53881 Hungary
89fab1dc-57e4-4ae2-a09d-dc4c3853746c Netherlands
93e99bc6-3c50-4d4e-8dab-2ecd76d0417a Croatia
08db16ab-9505-477e-9080-b8eb61023b9f Estonia
4f893246-b7c9-4f65-8f98-1b75b58738fd Greece
749b0e40-157c-4198-a012-acacb7f393b0 Portugal
b4a7249b-8fa9-4de0-b8b3-5a08a071ef11 Sweden
a598c7f0-f6d3-4f7b-b775-32a57331773a Bulgaria
02c15854-3e58-4d7f-a1f7-05b9f9054e4d Poland
8c875698-d6ce-4ea3-a56b-f0a77d05cbdf France
36071bfd-1fea-4fc9-91a9-673da4bf1906 Germany
67411ef8-a1ba-4aed-9b46-602998eacd87 Poland
b9ce5fad-c838-40de-9a06-719a486c5e12 Norway
532a281b-f12e-484d-9cc8-2806bb08bd3a Belgium
3ce1b890-a531-4759-b009-48e072e20e4e Germany
6c397723-8ee9-48ee-bef3-9b2a4f30112a Denmark
c1fa243d-47f7-4b14-ba27-36261d171049 Finland
bc2afb3d-c95f-4e79-8e41-5dcc34c3420e Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571726
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width386 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight56 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight68 kg
Package Level 1 EAN8015644571726
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 8000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss180 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)2000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
