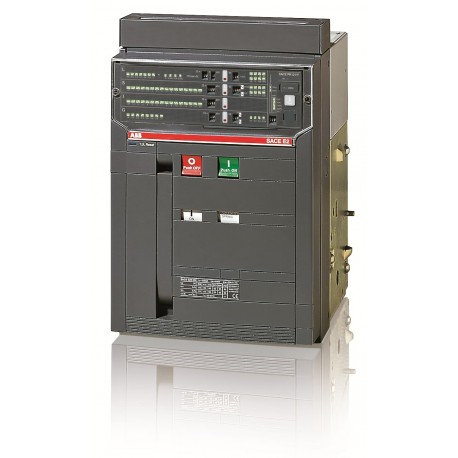

1SDA055824R1 ABB E2B 2000 PR121/P-LI In 2000A 3p F HR
1SDA055824R1
055824
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SDA055824R1 air circuit breaker protects high-voltage electrical installations by automatically interrupting dangerous fault currents and overloads. These core distribution components ensure safety and operational continuity in heavy industrial plants.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 17601036-93a2-4ef0-86cd-79f2a89bc037 Italy
- Simplified SCIP: fb4c6977-2e75-4bf5-b95e-661964022271 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644571641
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 296 mm
- Product Net Height: 418 mm
- Product Net Depth / Length: 302 mm
- Product Net Weight: 45 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 17601036-93a2-4ef0-86cd-79f2a89bc037 Italy |
| Simplified SCIP | fb4c6977-2e75-4bf5-b95e-661964022271 Germany |
| a5ee1197-e61e-43f4-91b4-2ee60c7dad84 Denmark | |
| e078436d-315f-4ed0-a3ee-05b76253b0eb Croatia | |
| a5e99f2f-a0f5-4741-b6a1-a17828a8fd32 Sweden | |
| e005de71-026b-4a0f-8e4b-b7c710f04553 Poland | |
| 90c1394a-3268-4183-8bea-eaa4c3a7918a Spain | |
| 9f1ba297-d0f2-4b29-bf16-87ece9a3f39a Hungary | |
| 8a888822-2ea4-41b2-8b65-fa770ec01a5a Portugal | |
| 04e4e1b4-20de-495e-9bb2-39b5e05bc34d Poland | |
| 87eef0ba-c0a0-41b6-a3ee-4fbee7782412 Czech Republic | |
| b6c5371e-2ad9-43a1-99cc-c187ea8fdfc5 Belgium | |
| ff5b7b52-05a3-4726-8863-bf9a4c2105ac Norway | |
| 75708279-21e5-42f5-9995-5fcc76d5d68c Poland | |
| b7b216ee-7a3a-4dbf-8097-fc0629ca1195 Germany | |
| 909e2984-2106-4311-a050-0f6097d24850 Finland | |
| 551626f0-5880-484d-92f0-28327b85855d Bulgaria | |
| b2368c1e-e049-4de2-87e0-d0f3dd1cb8e4 Germany | |
| a53da9bd-1ab8-484b-9633-e75eb89e49c3 Netherlands | |
| 1c454441-8ec4-4056-82e1-eca1287f9344 France | |
| 6d13831d-9842-4394-9933-d2b8ce8f6d45 Sweden | |
| 79b0eade-ad60-4631-ab85-7cd5b56243d0 Germany | |
| 8417c8d7-30f5-4d72-a4f0-b1f8167a4556 France | |
| d1b5bade-bad3-4d65-8ded-07892c072180 Hungary | |
| d2a82461-b884-4ea4-90be-d31018c20b69 Belgium | |
| 99333488-fc90-4e97-95bc-4454215dbb4a Greece | |
| b40dfb72-9003-4ba4-96c0-58f5fbb639db Germany | |
| c9c509c2-932d-4583-a52b-68b1150cb3a4 Estonia | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644571641 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 296 mm |
| Product Net Height | 418 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 45 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 515 mm |
| Package Level 1 Gross Weight | 55 kg |
| Package Level 1 EAN | 8015644571641 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 30 cycles per hour | |
| Mechanical Durability | 25000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 180 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 2000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
| for 3 s 42 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA |
| (230 V AC) 42 kA | |
| (380 V AC) 42 kA | |
| (400 V AC) 42 kA | |
| (415 V AC) 42 kA | |
| (440 V AC) 42 kA | |
| (500 V AC) 42 kA | |
| (660 V AC) 42 kA | |
| (690 V AC) 42 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LI |
| Release Type | EL |
| Short-Circuit Performance Level | B |
| Standards | IEC |
| Sub-type | E2 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Rear flat Horizontal | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0014 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
