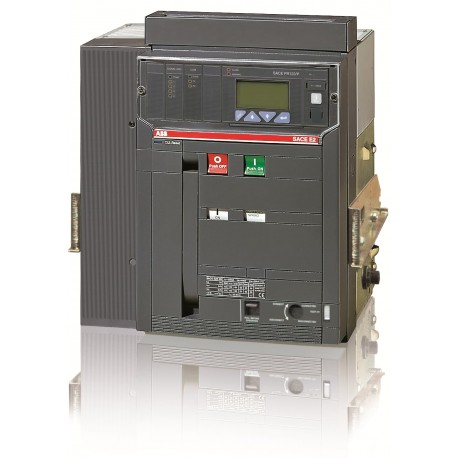

ABB 1SDA055820R1 1SDA055820R1 ABB E2B 1600 PR122/P-LSI In 1600A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA055820R1 ABB E2B 1600 PR122/P-LSI In 1600A 4p W MP

1SDA055820R1

055820

ABB

1 Pcs.

E2B 1600 PR122/P-LSI In=1600A 4p W MP E2B1600 PR122/P LSI 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPb32f897c-7a56-4c4a-92fe-dbfc1a480eb2 Italy
Simplified SCIP26b04924-c7ac-4e1c-b27f-0f8ec3e6e11c France
4f31ec7a-161b-4b71-b798-c5965956d2b0 Spain
92a86b37-bc01-41c4-8ba9-1e3035d1a0cb Hungary
832a9c39-c3d6-490e-8a0b-a198b5b23c66 Germany
17f8c052-68f2-42fb-b8c1-f8fe30ba03cc Sweden
7d755bf3-c805-466b-b681-dc4a077a674c Germany
4258a212-5448-4bf3-a99a-22799f82ba0b Belgium
2dec6fbb-54ee-4b9e-b695-d168405e1646 Germany
9a6310b0-10b2-495f-acf0-b93c28f4f941 Poland
bae3a22a-706f-4b43-8616-334665d646e1 Norway
2bfab3d9-3762-4386-a86b-3ba7cc481c2c Belgium
e7109d6f-83ab-42b2-9c44-57b5b2c5cb3c Germany
ac960d3d-d167-4b7e-b7f0-2d3a0e8417f3 Denmark
34c4e5e2-eb74-49b2-970c-ef3748a9dc9b Finland
c033b899-f7e6-4fb3-9905-949bea905c5f Estonia
e4c19a47-e937-4cb6-a7ba-d90f89837f0d Portugal
145c451a-16d7-4474-a41e-222738839612 Greece
d6b405fb-c164-48a0-8dba-3a988ec951f4 Poland
aebda3ad-5e36-47eb-b6b1-7611128a8830 Sweden
8966d078-47a6-4757-9549-74e0b4d0dca6 Bulgaria
212cf0d1-f76f-4ffb-a3e3-a37c4cb29c57 Germany
cdb526d1-856c-4177-8aa7-adc0aacd2f48 Croatia
7b80880f-3435-4341-b7ec-aa20828f4106 Czech Republic
158661dc-c034-4c34-a40c-675ff55e46c5 Poland
e2c764e3-fa32-4f9b-bf08-defa270de0a4 Hungary
83e22757-b7b8-4d91-89dd-e4c01ae4b196 Netherlands
08a662af-7a49-4bac-9894-c80bdd97f6ff France
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644571603
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width414 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight61 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight73 kg
Package Level 1 EAN8015644571603
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 12000 cycle
Ue = 500 ... 690 V 10000 cycle
30 cycles per hour
Mechanical Durability25000 cycle
60 cycles per hour
Number of Poles4P
Power Loss215 W
Rated Current (In)1600 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)1600 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 42 kA
for 3 s 42 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 42 kA
(230 V AC) 42 kA
(380 V AC) 42 kA
(400 V AC) 42 kA
(415 V AC) 42 kA
(440 V AC) 42 kA
(500 V AC) 42 kA
(660 V AC) 42 kA
(690 V AC) 42 kA
Rated Uninterrupted Current (Iu)1600 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSI
Release TypeEL
Short-Circuit Performance LevelB
StandardsIEC
Sub-typeE2
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0014
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
